Handwheel with safety

grip in composite plastic

Adjustable handles and levers : Handwheel with safety
grip in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

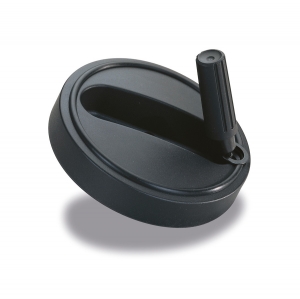

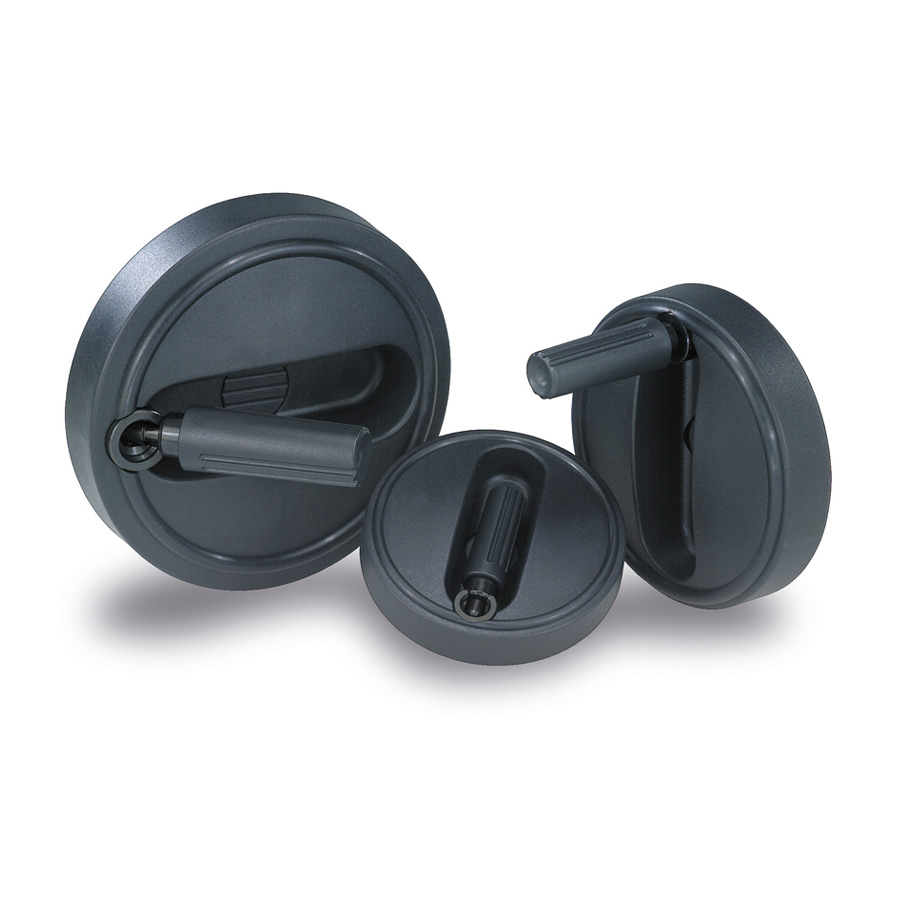

Handwheel in fibre glass reinforced polyamide, grey anthracite. All steel parts with black oxide finish. Handwheel supplied assembled. Grip goes back automatically to resting position.

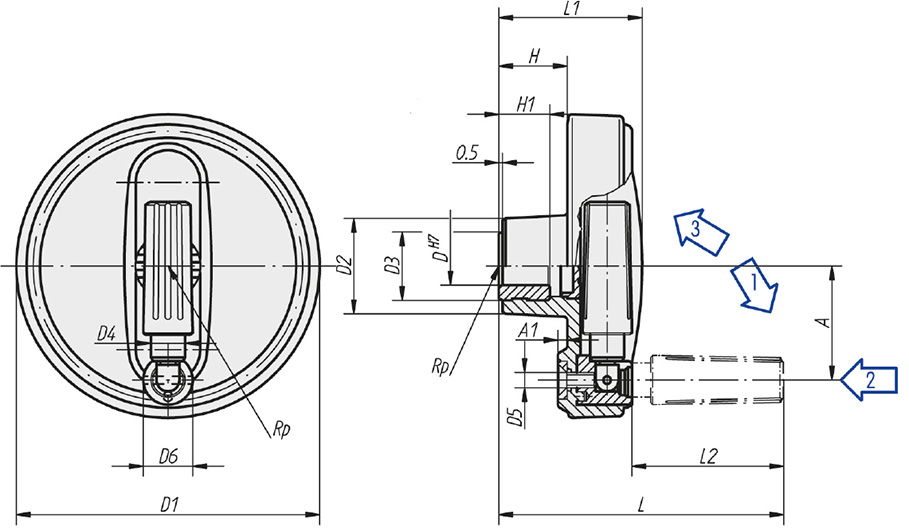

Schéma 1 + Handwheel with safety
grip in composite plastic

REF DESIGNATION D1 DH7 A A1 D2 D3 D4 D5 D6 H H1 L L1 L2 Wight (g) 3D Quote
9698 HANDWHEEL SAFETY GRIP POLYA. D.80 BORE 8 80 8 30 2,5 25 19 13 M4 13 17,5 13 73 37,5 38 100
9699 HANDWHEEL SAFETY GRIP POLYA. D.80 BORE 10 80 10 30 2,5 25 19 13 M4 13 17,5 13 73 37,5 38 100
9700 HANDWHEEL SAFETY GRIP POLYA. D.80 BORE 12 80 12 30 2,5 25 19 13 M4 13 17,5 13 73 37,5 38 100
9701 HANDWHEEL SAFETY GRIP POLYA. D.100 BORE 10 100 10 38 3 28 19 16 M5 16 20 13 88,5 44 47,5 179
9702 HANDWHEEL SAFETY GRIP POLYA. D.100 BORE 12 100 12 38 3 28 19 16 M5 16 20 13 88,5 44 47,5 179
9703 HANDWHEEL SAFETY GRIP POLYA. D.125 BORE 12 125 12 47,5 4 35 25 20 M6 20 23,5 18,5 108 53 58,5 328
9704 HANDWHEEL SAFETY GRIP POLYA. D.125 BORE 14 125 14 47,5 4 35 25 20 M6 20 23,5 18,5 108 53 58,5 328
9705 HANDWHEEL SAFETY GRIP POLYA. D.125 BORE 16 125 16 47,5 4 35 25 20 M6 20 23,5 18,5 108 53 58,5 328
9706 HANDWHEEL SAFETY GRIP POLYA. D.160 BORE 14 160 14 62 5,6 45 25 25 M8 26 28 18,5 142,5 64,5 82 651
9942 HANDWHEEL WITH SAFETY GRIP 160 16 62 5,6 45 25 25 M8 26 28 18,5 142,5 64,5 82 651
