Clamping knobs and handles

T- handles and wing knobs
Available variations

Knob JUX

in full stainless steel

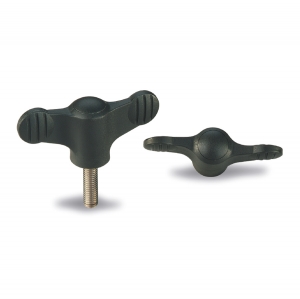

Bouton JU

en plastique composite

Knob JUT

in composite plastic

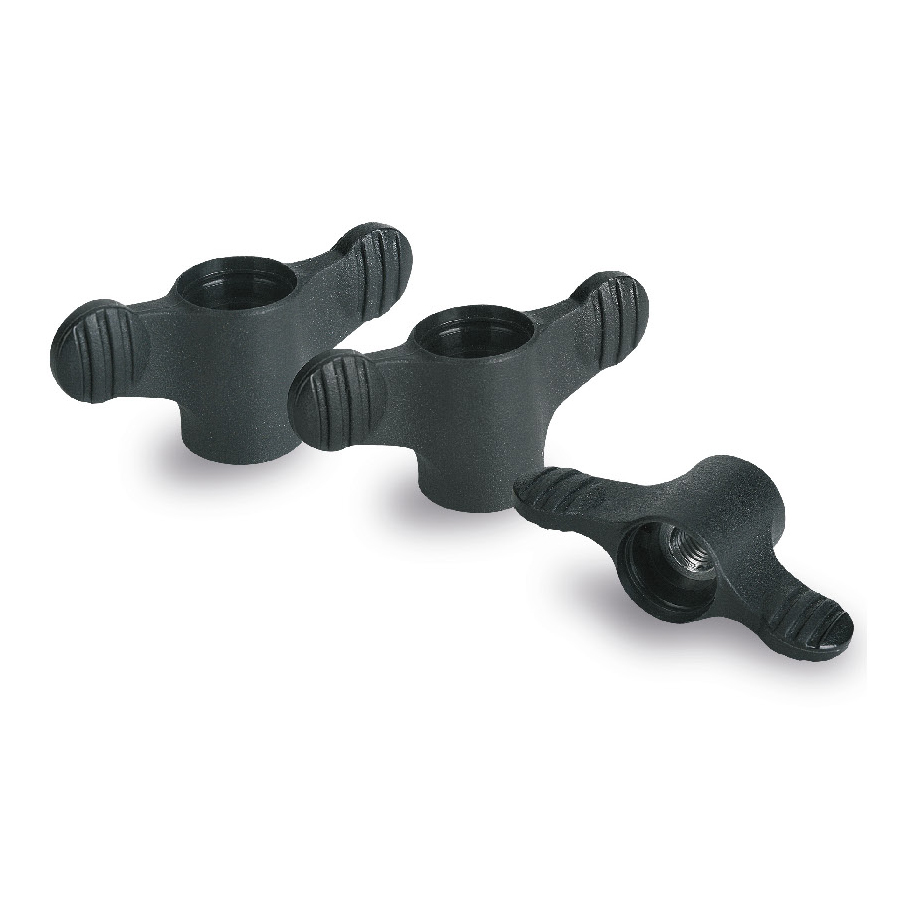

T- handles and wing knobs : Knob JUT in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Knob made of glass fibre reinforced polyamide, anthracite grey, with through-insert either in zinc plated steel or stainless steel 1.4305 AISI 303.

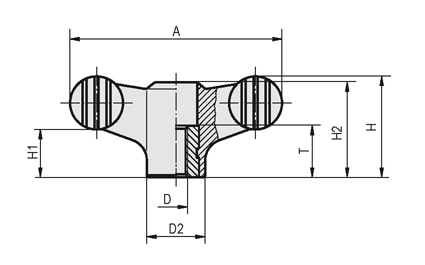

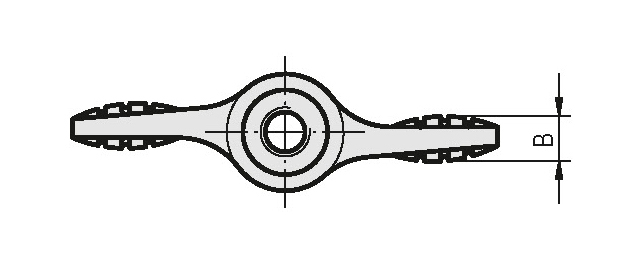

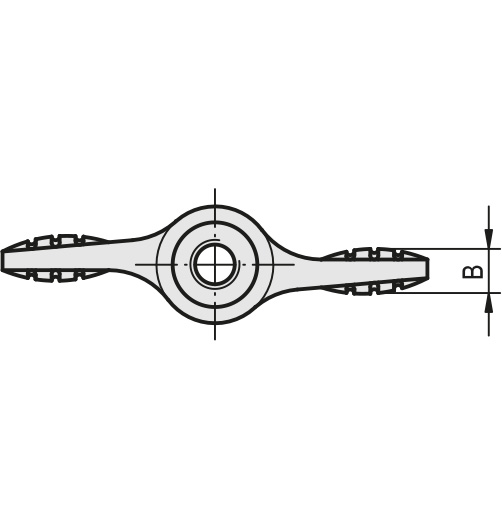

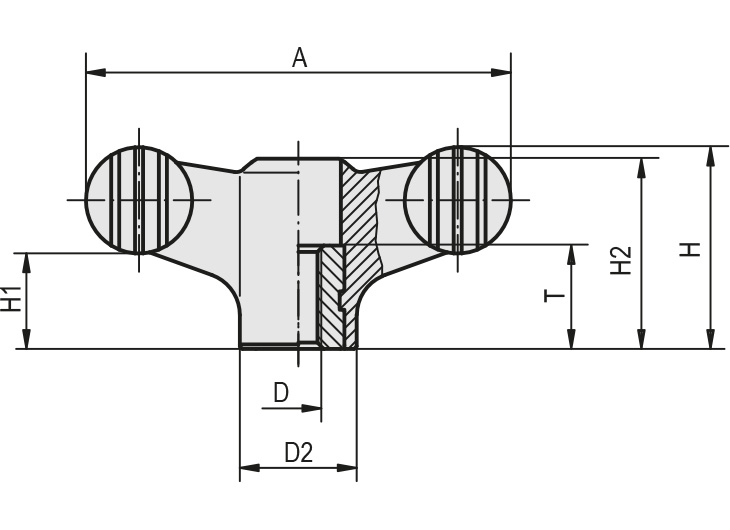

REF DESIGNATION B D D2 H H1 H2 T 3D Quote
15606 KNOB JUT POLYA. L.38 STEEL INS THROUGH M4 4,5 M4 12 18 8,5 16,1 10
15607 KNOB JUT POLYA. L.38 STEEL INS THROUGH M5 4,5 M5 12 18 8,5 16,1 10
15608 KNOB JUT POLYA. L.38 STEEL INS THROUGH M6 4,5 M6 12 18 8,5 16,1 10
15609 KNOB JUT POLYA. L.50 STEEL INS THROUGH M5 5 M5 14 24 11,5 22 10
15610 KNOB JUT POLYA. L.50 STEEL INS THROUGH M6 5 M6 14 24 11,5 22 10
15611 KNOB JUT POLYA. L.75 STEEL INS THROUGH M8 7 M8 21 35,6 17 33,3 14
15612 KNOB JUT POLYA. L.75 STEEL INS THROUGH M10 7 M10 21 35,6 17 33,3 14
15606i KNOB JUT POLYA. L.38 STAINL INS THROUGH M4 4,5 M4 12 18 8,5 16,1 10
15607i KNOB JUT POLYA. L.38 STAINL INS THROUGH M5 4,5 M5 12 18 8,5 16,1 10
15608i KNOB JUT POLYA. L.38 STAINL INS THROUGH M6 4,5 M6 12 18 8,5 16,1 10
15609i KNOB JUT POLYA. L.50 STAINL INS THROUGH M5 5 M5 14 24 11,5 22 10
15610i KNOB JUT POLYA. L.50 STAINL INS THROUGH M6 5 M6 14 24 11,5 22 10
15611i KNOB JUT POLYA. L.75 STAINL INS THROUGH M8 7 M8 21 35,6 17 33,3 14
15612i KNOB JUT POLYA. L.75 STAINL INS THROUGH M10 7 M10 21 35,6 17 33,3 14
