Clamping knobs and handles

Star knobs and grips
Available variations

Knob TRB

in composite plastic

Knob TR

in composite plastic

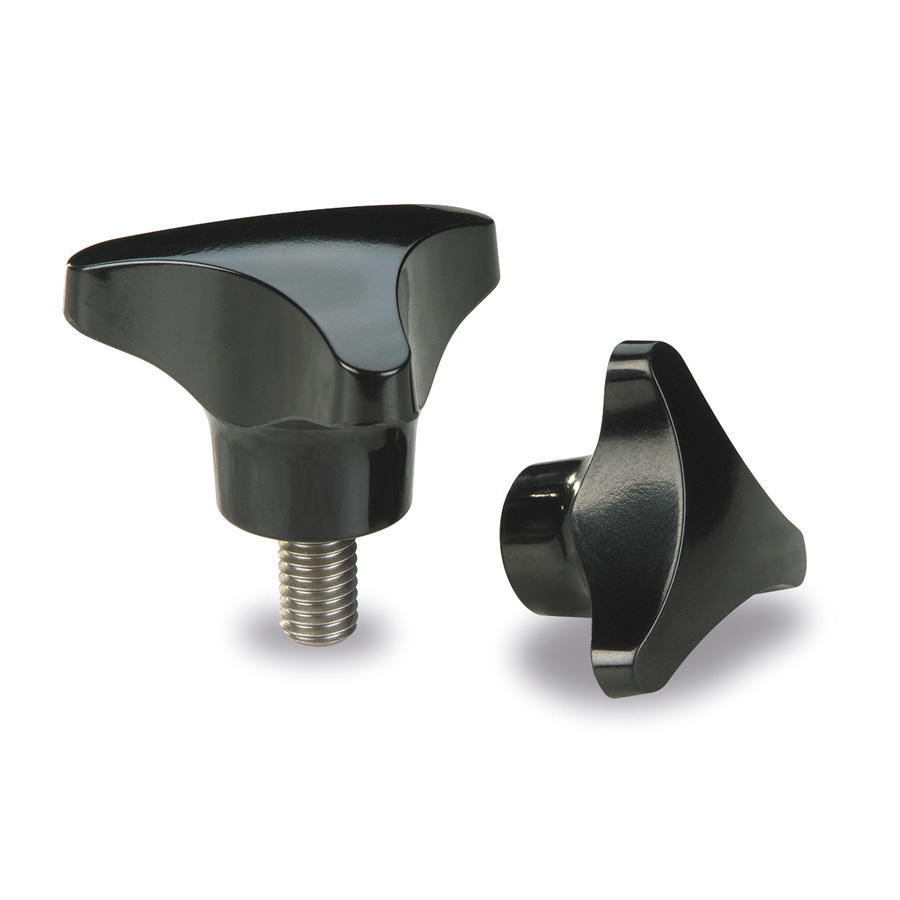

Star knobs and grips : Knob TR in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius
3D visualisation
Technical specifications
Add to favourites
Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in brass or zinc plated steel or stainless steel 1.4305 AISI 303.

AVAILABLE VERSIONS

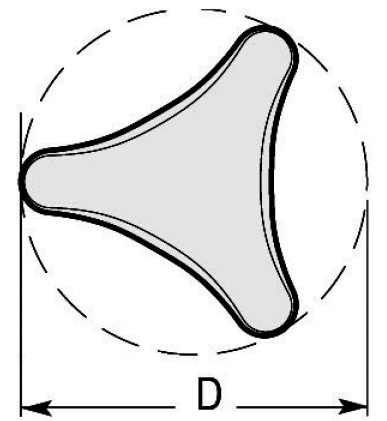

Schéma 1 + Knob TR in composite plastic

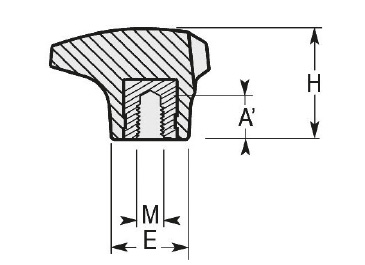

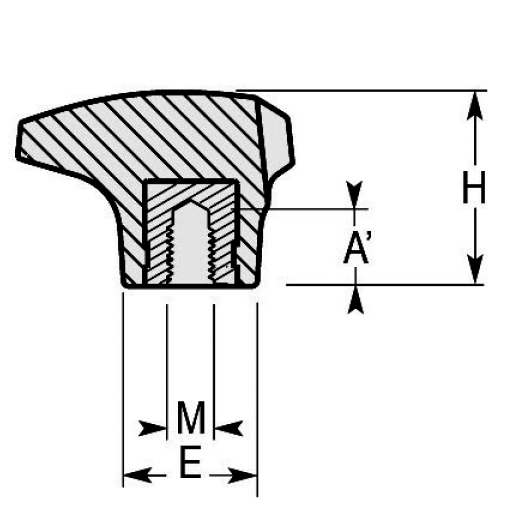

01 / Female insert

Schéma 2 + Knob TR in composite plastic
REF DESIGNATION D M A' H E 3D Quote
3497 KNOB TR BAK. D.32 BRASS INS M4 32 M4 6,5 18 11
3498 KNOB TR BAK. D.32 BRASS INS M5 32 M5 6,5 18 11
0103 KNOB TR HIGH BAK. D.40 BRASS INS M6 40 M6 9 22 14
2781 KNOB TR BAK. D.40 STEEL INS M6 40 M6 12 22 14
2782 KNOB TR BAK. D.50 STEEL INS M8 50 M8 14 28 18
2783 KNOB TR BAK. D.62 STEEL INS M10 62 M10 14 35 22
2811i KNOB TR BAK. D.40 STAINL. INS M6 40 M6 9 22 14
2812i KNOB TR BAK. D.50 STAINL. INS M8 50 M8 14 28 18
2813i KNOB TR BAK. D62 STAINL. INS M10 62 M10 14 35 22

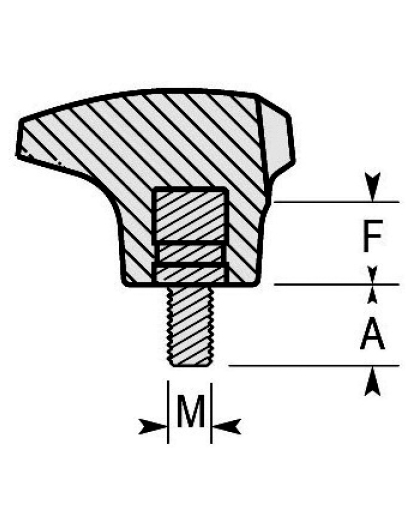

02 / With stud

Schéma 3 + Knob TR in composite plastic
REF DESIGNATION D M A H F 3D Quote
3499 KNOB TR BAK. D32 STEEL STUD M6*15 32 M6 15 18 11
2706 KNOB TR BAK. D40 STEEL STUD M6*15 40 M6 15 22 14
2707 KNOB TR BAK. D40 STEEL STUD M8*20 40 M8 20 22 14
2708 KNOB TR BAK. D50 STEEL STUD M8*20 50 M8 20 28 18
2776 KNOB TR BAK. D50 STEEL STUD M8*30 50 M8 30 28 18
2709 KNOB TR BAK. D50 STEEL STUD M10*25 50 M10 25 28 18
2710 KNOB TR BAK. D62 STEEL STUD M10*25 62 M10 25 35 22
2746i KNOB TR BAK D40 STAINL STUD M6*20 40 M6 20 22 14
2747i KNOB TR BAK D40 STAINL STUD M8*20 40 M8 20 22 14
2748i KNOB TR BAK D50 STAINL STUD M8*20 50 M8 20 28 18
2749i KNOB TR BAK D50 STAINL STUD M10*30 50 M10 30 28 18
2750i KNOB TR BAK D62 STAINL STUD M10*30 62 M10 30 35 22
