Knob TRB

in composite plastic

 Star knobs and grips : Knob TRB
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius

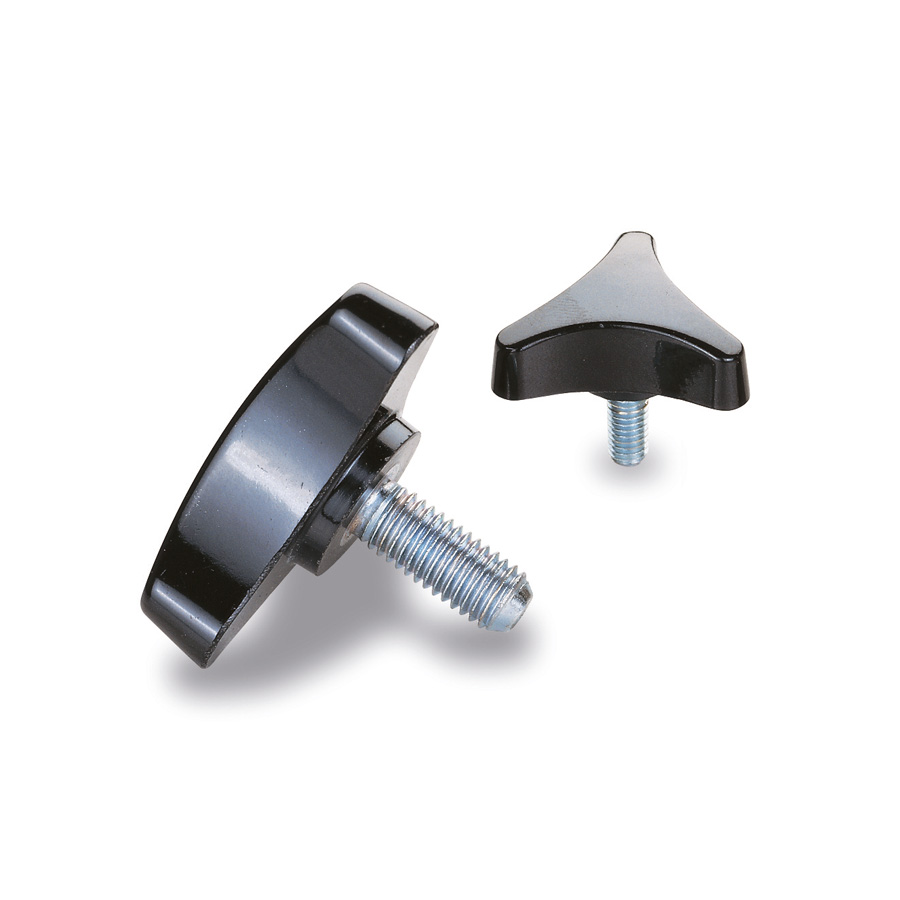

Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Female insert in brass and stud in zinc plated steel.

AVAILABLE VERSIONS


Schéma 1 + Knob TRB
in composite plastic

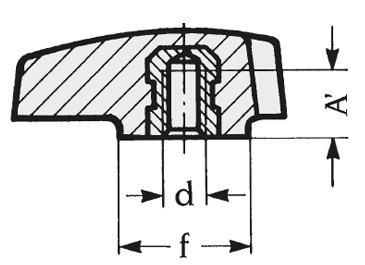

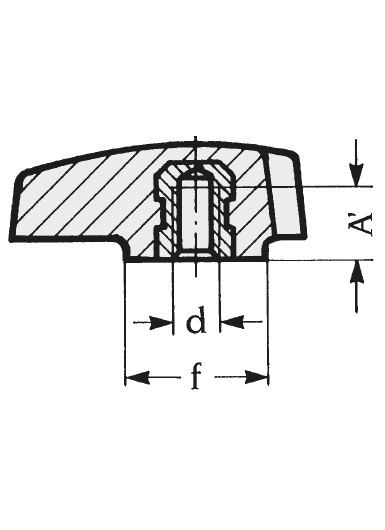

01 / Female insert

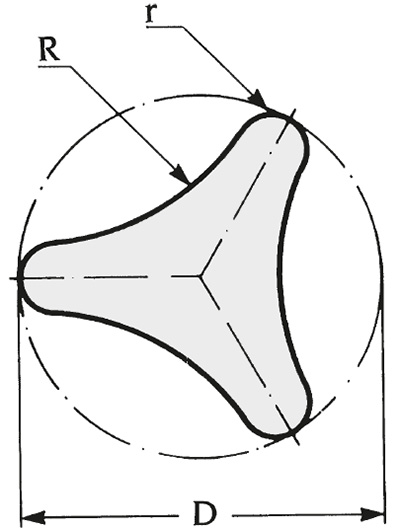

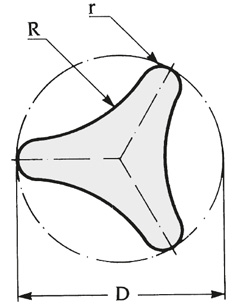

Schéma 2 + Knob TRB
in composite plastic
REF DESIGNATION D d A R f H r Wgt. (g) 3D Quote
2456 KNOB TRB BAK. D.32 BRASS INS M4 4 M4 6,5 3 12 10,5 22 5
2323 KNOB TRB BAK. D.40 BRASS INS M6 6 M6 6,5 3,7 15 13,1 27,5 11
2372 KNOB TRB BAK. D.50 BRASS INS M6 6 M6 6,5 4,7 18,8 16,3 34,4 17
2256 KNOB TRB BAK. D.62 BRASS INS M6 6 M6 9 5,9 23,5 20,6 43 31
2257 KNOB TRB BAK. D.62 BRASS INS M8 8 M8 8 5,9 23,5 20,6 43 34

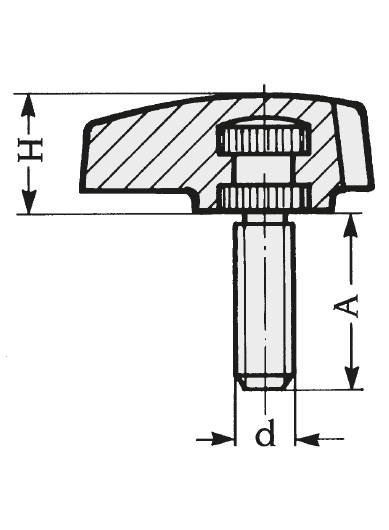

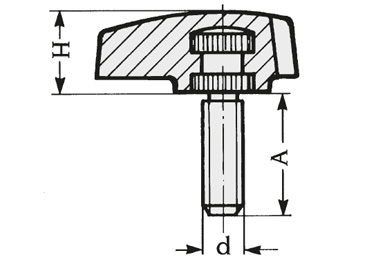

02 / With stud

Schéma 3 + Knob TRB
in composite plastic
REF DESIGNATION D d A R f H r Wgt. (g) 3D Quote
2236 KNOB TRB BAK. D.32 STEEL STUD M6*15 6 M6 15 3 12 10,5 22 9
2237 KNOB TRB BAK. D.40 STEEL STUD M6*15 6 M6 15 3,7 15 13,1 27,5 13
2409 KNOB TRB BAK. D.50 STEEL STUD M8*16 8 M8 16 4,7 18,8 16,3 34,4 24
2238 KNOB TRB BAK. D.50 STEEL STUD M8*20 8 M8 20 4,7 18,8 16,3 34,4 25
2239 KNOB TRB BAK. D.62 STEEL STUD M10*25 10 M10 25 5,9 23,5 20,6 43 47
