Handle PMA

in composite plastic

Fixed knobs and handles  : Handle PMA
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius

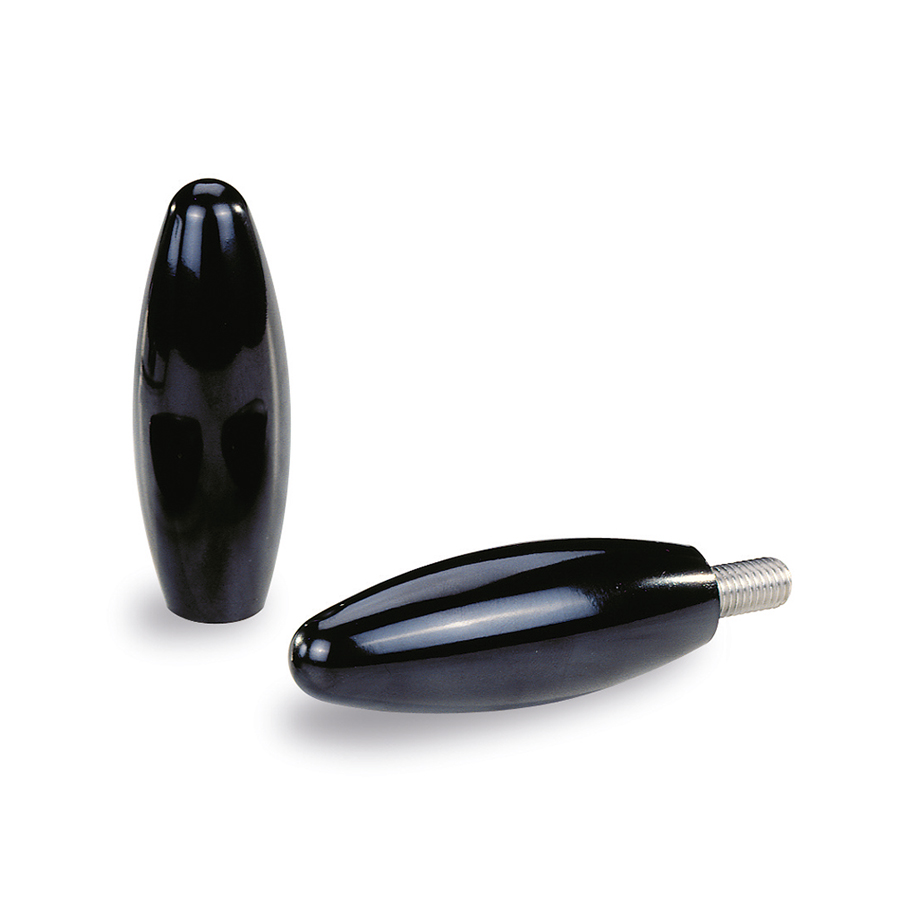

Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in zinc plated steel.

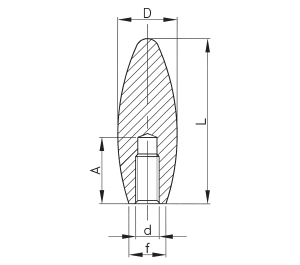

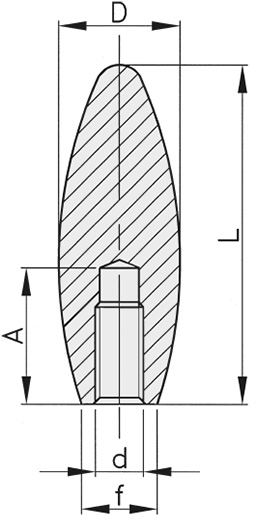

01 / Plastic thread

Schéma 1 + Handle PMA
in composite plastic
REF DESIGNATION L d A D f Wight (g) 3D Quote
1036 HANDLE PMA BAK. L.85 M12 85 M12 40 30 19 52

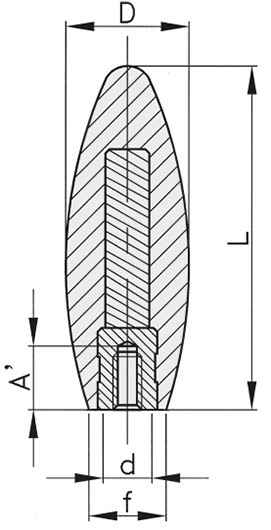

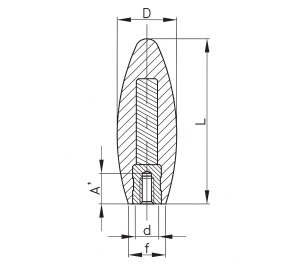

02 / Female insert

Schéma 2 + Handle PMA
in composite plastic
REF DESIGNATION L d D f A' Wight (g) 3D Quote
1870 HANDLE PMA BAK. L.85 STEEL INS M8 85 M8 30 19 14 80
1854 HANDLE PMA BAK. L.85 STEEL INS M10 85 M10 30 19 22 85

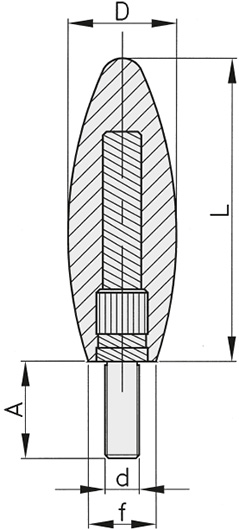

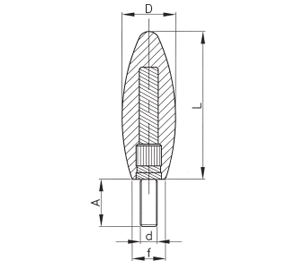

03 / With stud

Schéma 3 + Handle PMA
in composite plastic
REF DESIGNATION L d D f A Wight (g) 3D Quote
1861 HANDLE PMA BAK. L.85 STEEL STUD M8*10 85 M8 30 19 10 85
1689 HANDLE PMA BAK. L.85 STEEL STUD M10*12 85 M10 30 19 12 90
