Handle PMB

in composite plastic

Fixed knobs and handles  : Handle PMB
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius

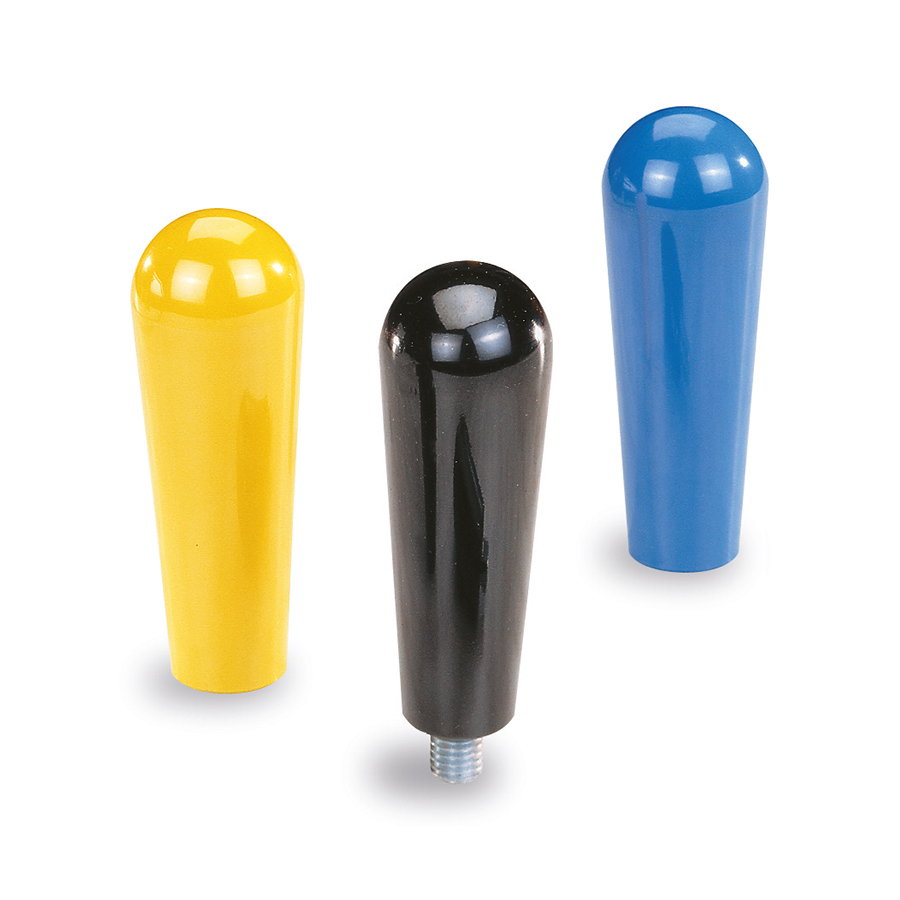

Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in zinc plated steel.

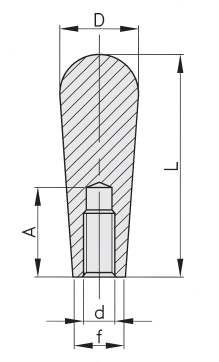

01 / Plastic thread

Schéma 1 + Handle PMB
in composite plastic
REF DESIGNATION L d D f A Wight (g) 3D Quote
1049 HANDLE PMB BAK. L.55 M12 55 M12 30 20 30 31
1054 HANDLE PMB BAK. L.65 M12 65 M12 30 20 30 38
1077 HANDLE PMB BAK. L.75 M12 75 M12 30 20 30 44
1079 HANDLE PMB BAK. L.85 M12 85 M12 30 20 30 52

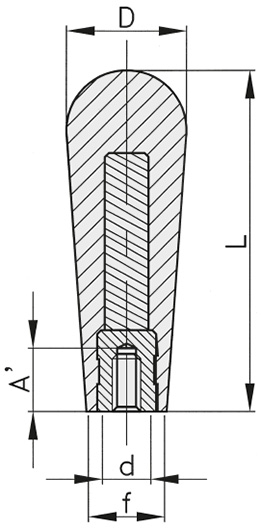

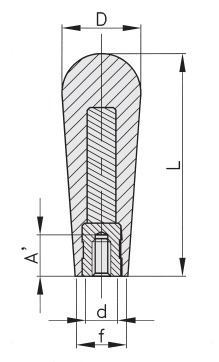

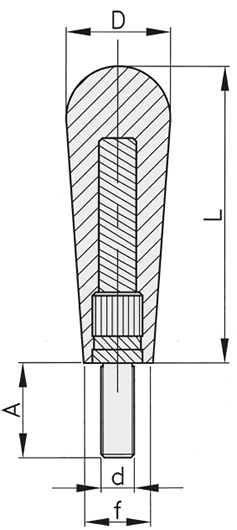

02 / Female insert

Schéma 2 + Handle PMB
in composite plastic
REF DESIGNATION L d D f A' Wight (g) 3D Quote
1694 HANDLE PMB BAK. L.55 STEEL STUD M10*12 55 M10 30 20 12 58
1858 HANDLE PMB BAK. L.65 STEEL STUD M8*10 65 M8 30 20 10 65
1695 HANDLE PMB BAK. L.65 STEEL STUD M10*12 65 M10 30 20 12 70
1860 HANDLE PMB BAK. L.85 STEEL STUD M8*10 85 M8 30 20 10 85
1690 HANDLE PMB BAK. L.85 STEEL STUD M10*12 85 M10 30 20 12 90

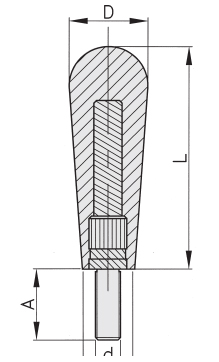

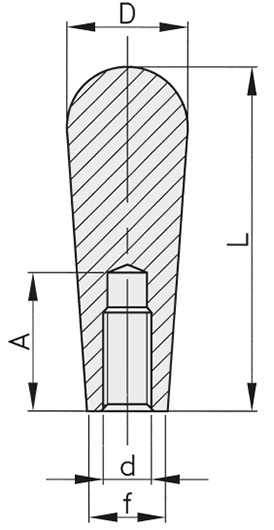

03 / With stud

Schéma 3 + Handle PMB
in composite plastic
REF DESIGNATION L d D F A Wight (g) 3D Quote
1871 HANDLE PMB BAK. L.55 STEEL INS M8 55 M8 30 20 14 55
1850 HANDLE PMB BAK. L.55 STEEL INS M10 55 M10 30 20 22 60
1851 HANDLE PMB BAK. L.65 STEEL INS M10 65 M10 30 20 22 70
1873 HANDLE PMB BAK. L.75 STEEL INS M8 75 M8 30 20 14 72
1852 HANDLE PMB BAK. L.75 STEEL INS M10 75 M10 30 20 22 80
1874 HANDLE PMB BAK. L.85 STEEL INS M8 85 M8 30 20 14 85
1853 HANDLE PMB BAK. L.85 STEEL INS M10 85 M10 30 20 22 90
