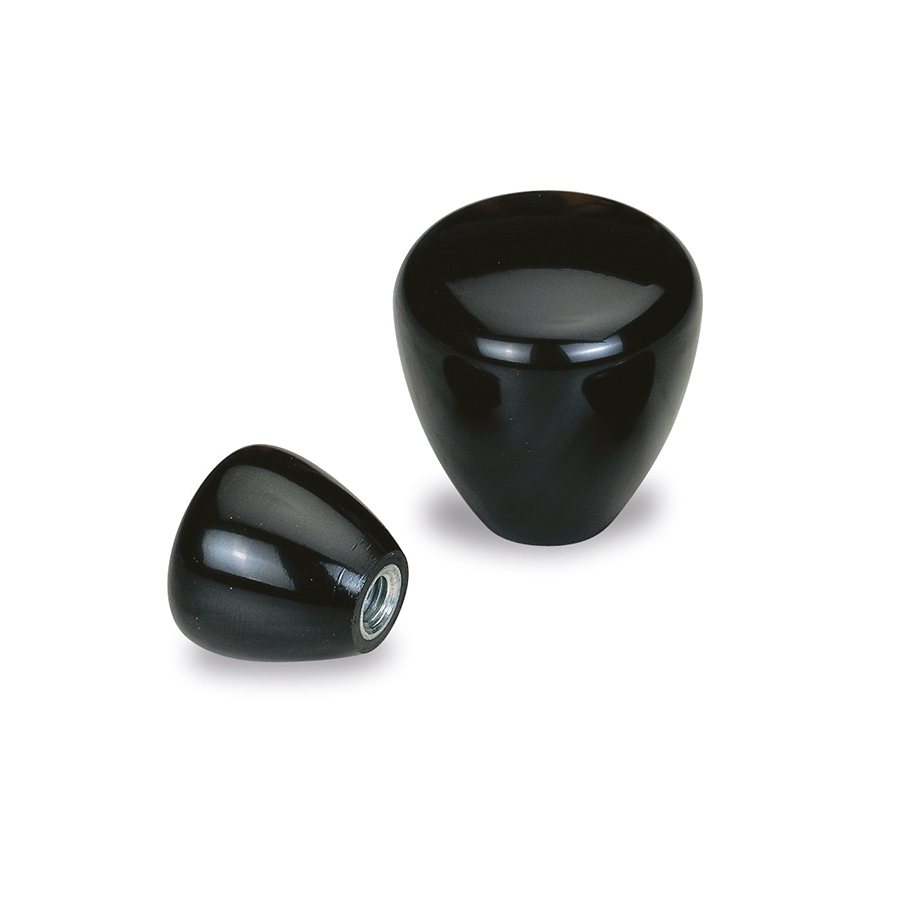

Knob  PHL

in composite plastic

Fixed knobs and handles  : Knob  PHL
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius
Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in zinc plated steel.

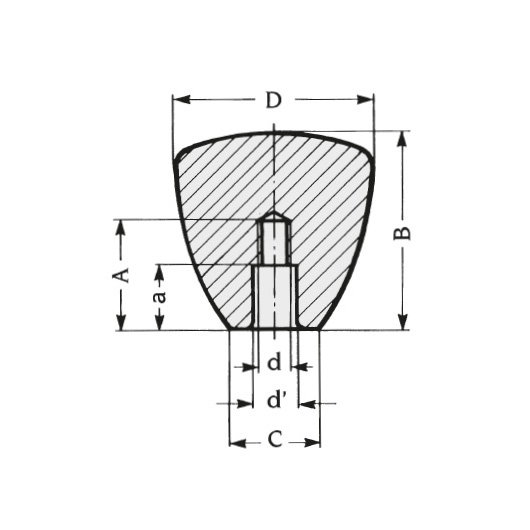

01 / Filetage moulé avec chambrage

Schéma 1 + Knob  PHL
in composite plastic
REF DESIGNATION D d a B C d' A max TRI 3D Quote
1776 KNOB PHL BAK. D.45 M10 45 M10 17,5 45 20 14 36 80

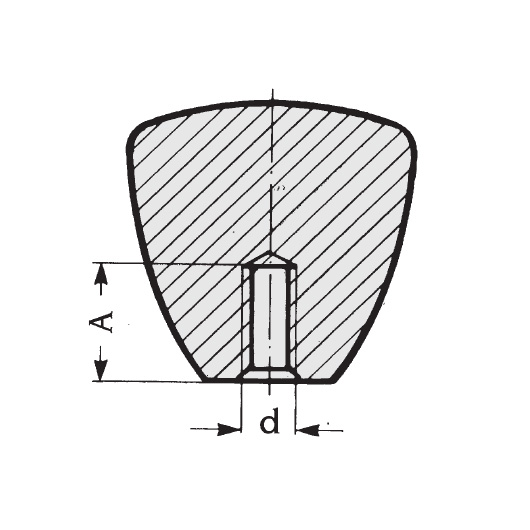

02 / Filetage moulé sans chambrage

Schéma 2 + Knob  PHL
in composite plastic
REF DESIGNATION D d B C A max 3D Quote
1759 KNOB PHL BAK. D.25 M6 25 M6 25 12 14
1761 KNOB PHL BAK. D.25 M8 25 M8 25 12 18
1763 KNOB PHL BAK. D.30 H45 M6 30 M6 45 18 21

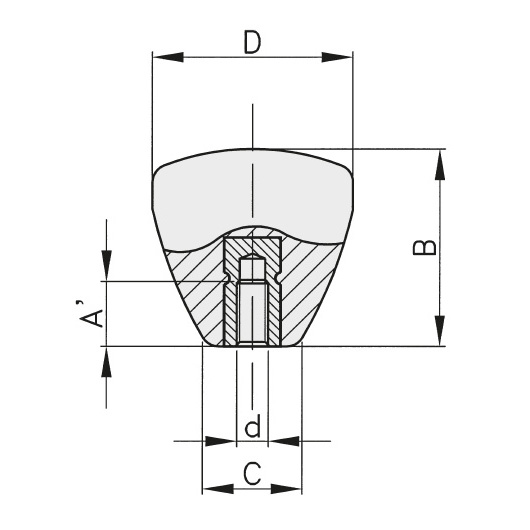

03 / Female insert

Schéma 3 + Knob  PHL
in composite plastic
REF DESIGNATION D d B C A' Wight (g) 3D Quote
2271 KNOB PHL BAK. D.25 BRASS INS M5 25 M5 25 12 10 15
1788 KNOB PHL BAK. D.25 STEEL INS M6 25 M6 25 12 12 20

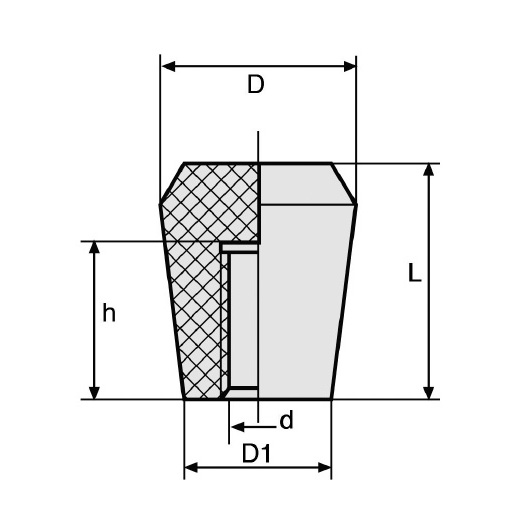

04 / Brass insert

Schéma 4 + Knob  PHL
in composite plastic
REF DESIGNATION D d h D1 L 3D Quote
18050 KNOB PHL BAK D.16 M6 CF 16 M6 14 12 20
18051 KNOB PHL BAK. D.20 M8 CF 20 M8 16 15 25
18052 KNOB PHL BAK. D.25 M10 CF 25 M10 20 20 32
18053 KNOB PHL BAK. D.32 M12 CF 32 M12 25 25 40
