Knurled knobs and handles : Knob PHM in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius
3D visualisation
Technical specifications
Add to favourites

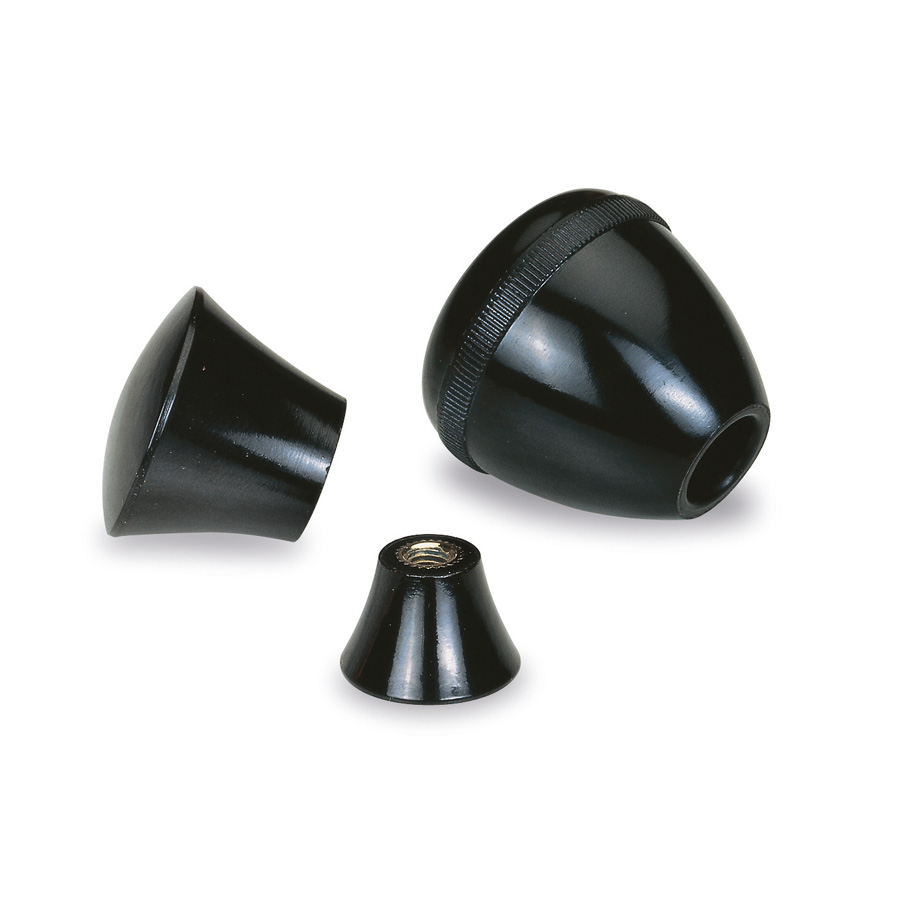

Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in zinc plated steel.

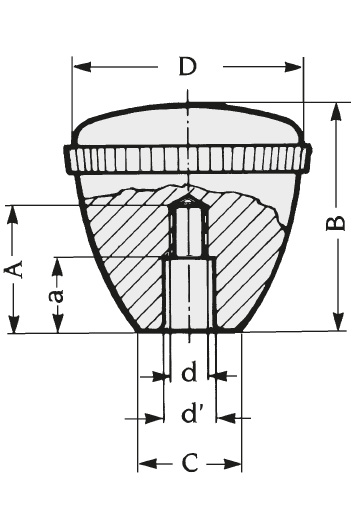

01 / Filetage moulé avec chambrage

Schéma 1 + Knob PHM in composite plastic
REF DESIGNATION D d a B C d' A max 3D Quote
1254 KNOB PHM BAK. D.45 M12 45 M12 11 45 20 14,2 36
125000 KNOB PHM BAK. D.47 M12 47 M12 11 47 20 14,2 36

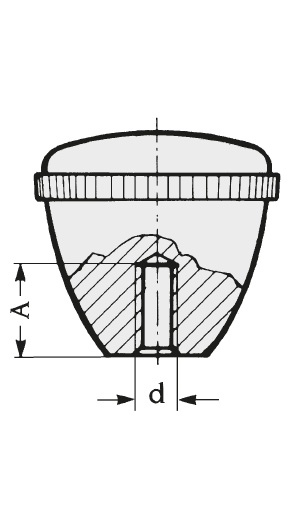

02 / filetage moulé sans chambrage

Schéma 2 + Knob PHM in composite plastic
REF DESIGNATION A max B C D d 3D Quote
1189 KNOB PHM BAK. D.45 M12 35 45 20 45 M12

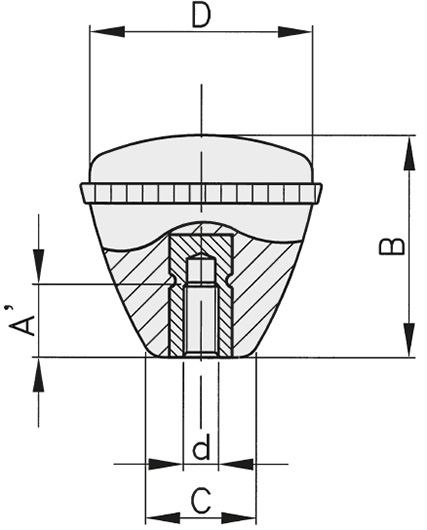

03 / Female insert

Schéma 3 + Knob PHM in composite plastic
REF DESIGNATION D d A' B C 3D Quote
1359 KNOB PHM BAK. D.30 STEEL INS M6 30 M6 12 30 14
1360 KNOB PHM BAK. D.30 STEEL INS M8 30 M8 14 30 14
1193 KNOB PHM BAK. D.45 STEEL INS M10 45 M10 22 45 20
1415 KNOB PHM BAK. D.45 STEEL INS M14 45 M14 20 45 20

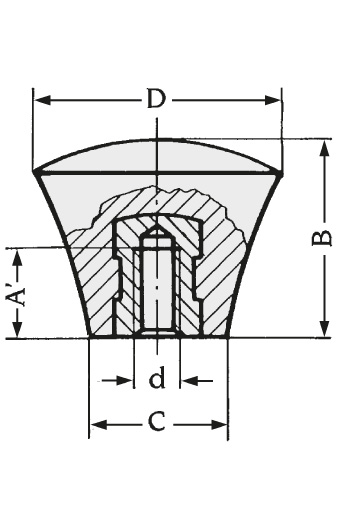

04 / Brass insert

Schéma 4 + Knob PHM in composite plastic
REF DESIGNATION D d A' B C 3D Quote
2305 KNOB D.20 M5 INS HC 20 M5 10 15,5 11
2309 26 M5 10 21 14,8
