knurled nut

high version DIN 466 in steel or stainless steel

Knurled  knobs and handles : knurled nut
high version DIN 466 in steel or stainless steel
  • Reach
  • Rohs

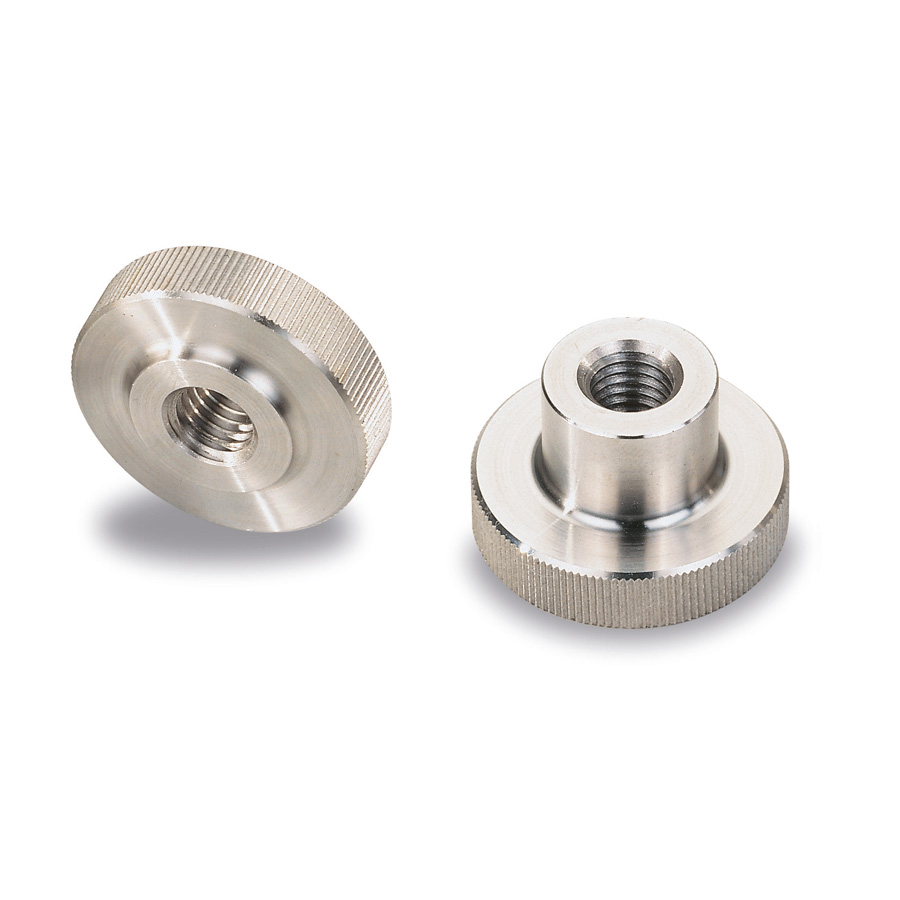

Knurled nut in free cutting steel 1.0718 with black oxide finish, or in stainless steel AISI 303 with natural finish.

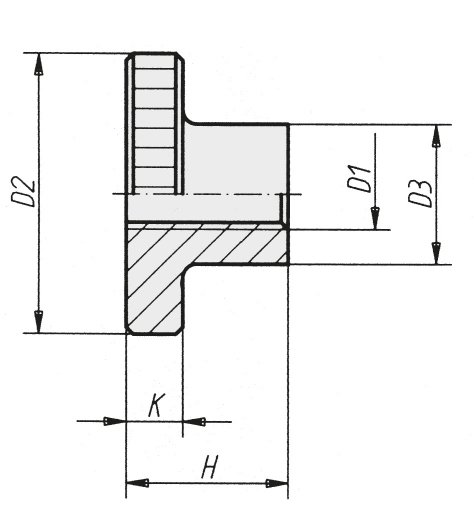

Schéma 1 + knurled nut
high version DIN 466 in steel or stainless steel
REF DESIGNATION D1 D2 D3 H K Wight (g) 3D Quote
8666 NUT KNURLED HIGH STEEL D.16 M4 M4 16 8 9,5 3,5 7
8667 NUT KNURLED HIGH STEEL D.20 M5 M5 20 10 11,5 4 13
8668 NUT KNURLED HIGH STEEL D.24 M6 M6 24 12 15 5 24
8669 NUT KNURLED HIGH STEEL D.30 M8 M8 30 16 18 6 46
8670 NUT KNURLED HIGH STEEL D.36 M10 M10 36 20 23 8 88
8671 NUT KNURLED HIGH STEEL D.36 M12 M12 40 22 25 10 125
8666i NUT KNURLED HIGH STAINL. D.16 M4 M4 16 8 9,5 3,5 7
8667i NUT KNURLED HIGH STAINL. D.20 M5 M5 20 10 11,5 4 13
8668i NUT KNURLED HIGH STAINL. D.24 M6 M6 24 12 15 5 24
8669i NUT KNURLED HIGH STAINL. D.30 M8 M8 30 16 18 6 46
8670i NUT KNURLED HIGH STAINL. D.36 M10 M10 36 20 23 8 88
8671i NUT KNURLED HIGH STAINL. D.36 M12 M12 36 20 23 8 125
