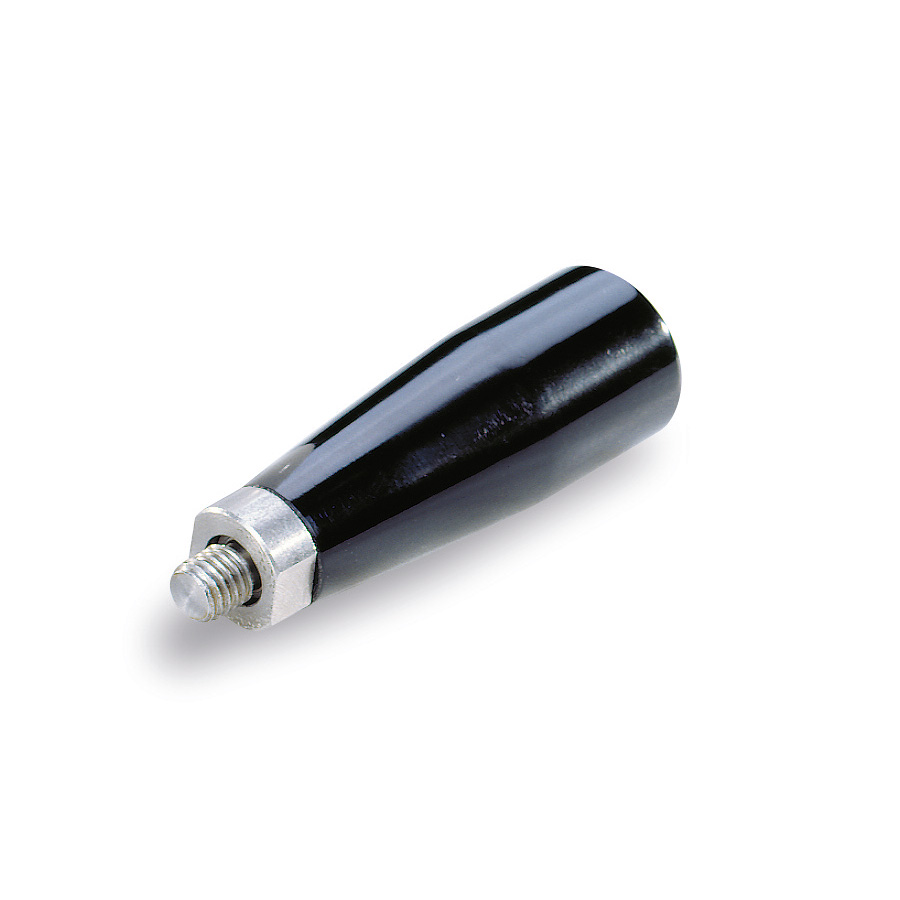

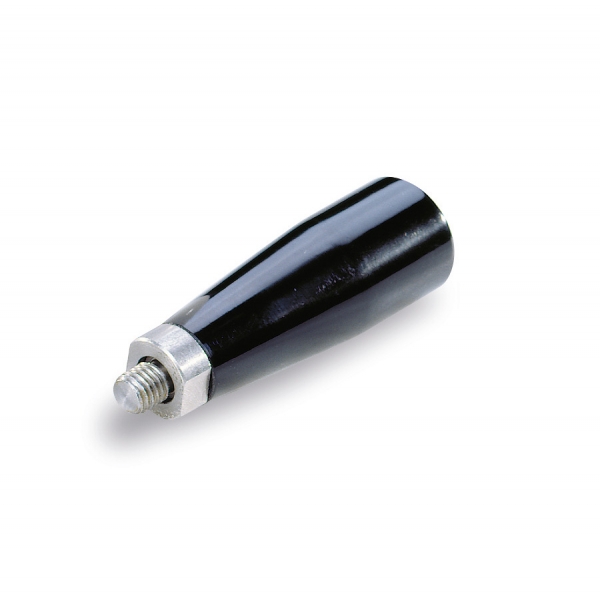

Revolving handle FSV

in composite plastic

Fixed knobs and handles  : Revolving handle FSV
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius
Handle made of high-duty, heat resistant duroplast, black, high gloss surface. Stud and ring in zinc plated steel.

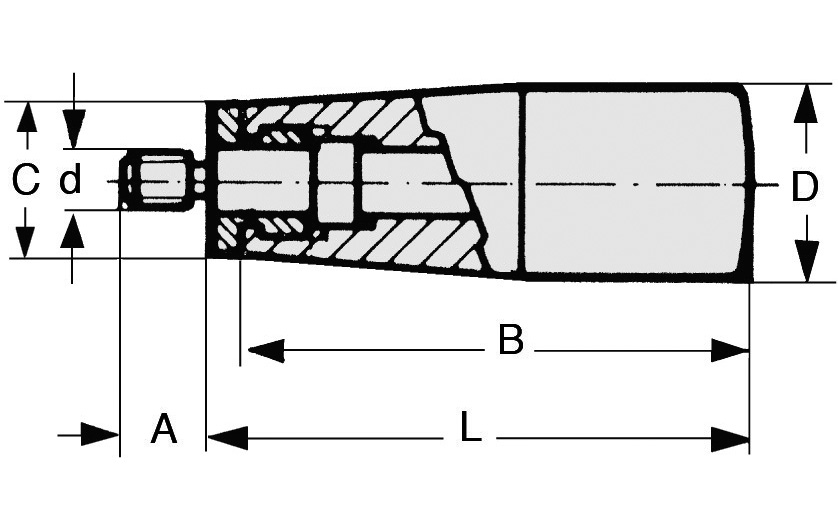

Schéma 1 + Revolving handle FSV
in composite plastic

REF DESIGNATION L D B C A Wight (g) 3D Quote
1886 HANDLE REVOLVING FSV BAK. D.17 L.48 STEEL STUD M5*7 48 M5 45 15 7 25
1888 HANDLE REVOLVING FSV BAK. D.23 L.64 STEEL STUD M8*9 64 M8 60 18 9 55
1890 HANDLE REVOLVING FSV BAK. D.28 L.74 STEEL STUD M10*11 74 M10 70 21 11 90
