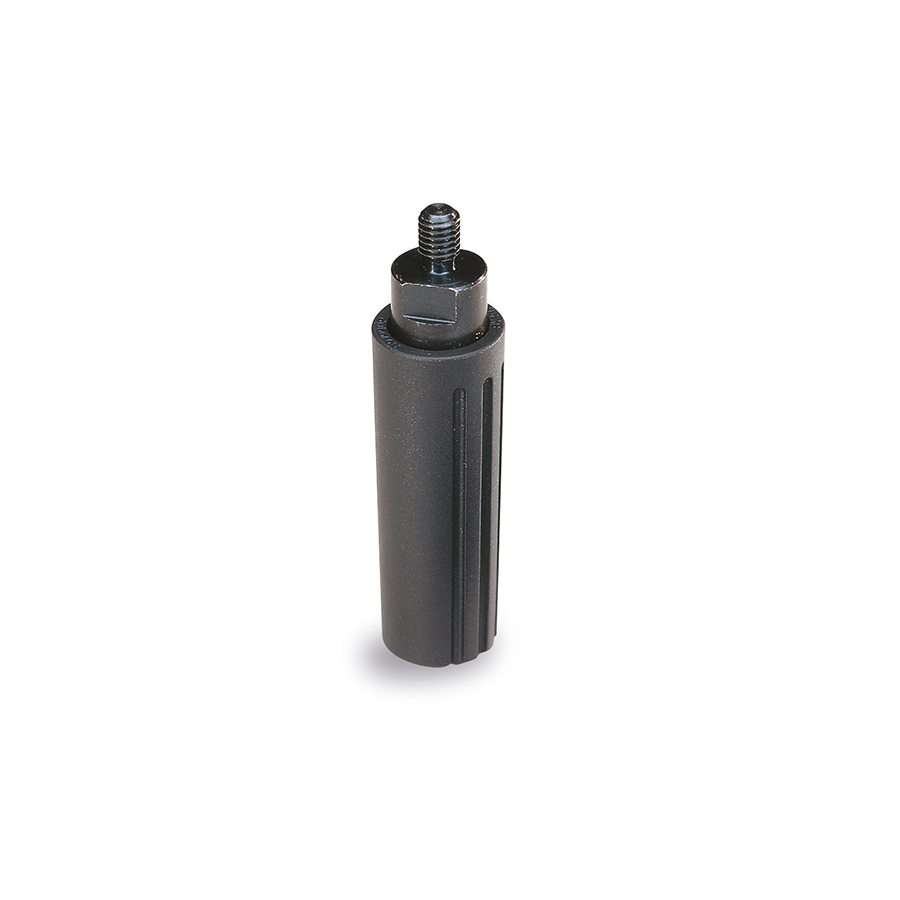

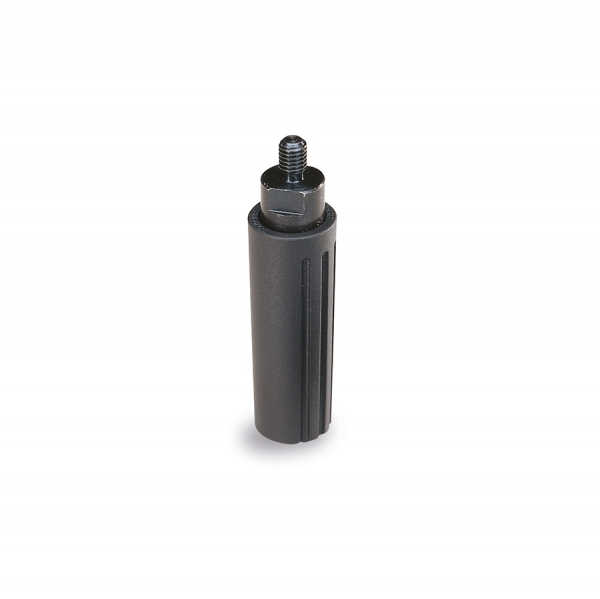

Revolving handle MHV

in composite plastic

Fixed knobs and handles  : Revolving handle MHV
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
Handle in fibre glass reinforced polyamide, grey anthracite. All steel parts with black oxide finish. Handle is supplied assembled.

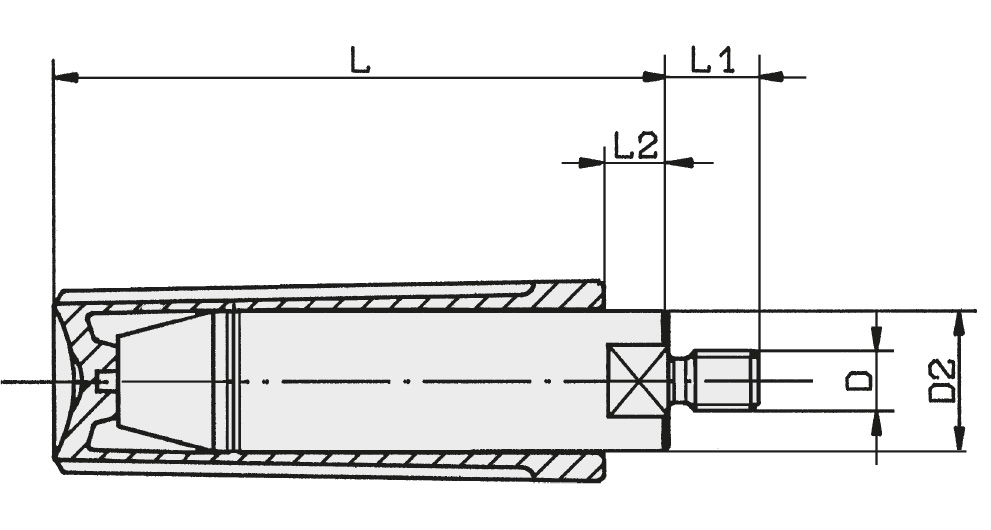

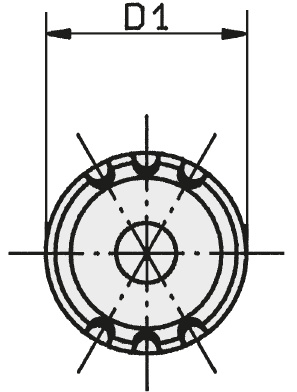

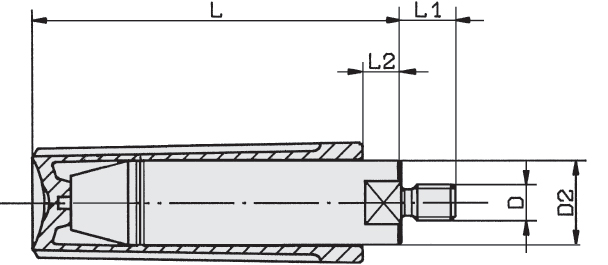

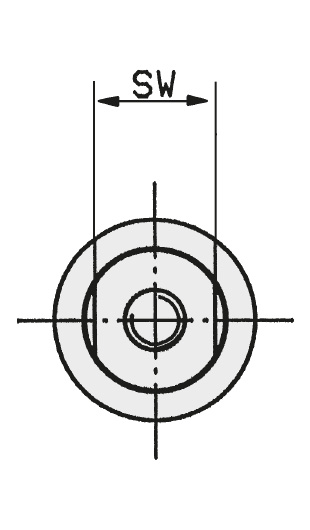

REF DESIGNATION L D D1 D2 L1 L2 SW Wgt. (g) 3D Quote
8201 REVOLVING HANDLE MHV POLYA. L.35 STUD M4*6 35 M4 13 9 6 4 8 13
8202 REVOLVING HANDLE MHV POLYA. L.45 STUD M5*7.5 45 M5 16 11 7,5 4,5 10 25
8203 REVOLVING HANDLE MHV POLYA. L.55 STUD M6*9 55 M6 20 14 9 6 12 50
8204 REVOLVING HANDLE MHV POLYA. L.71 STUD M8*12 71 M8 25 18 12 7 15 103
