Swivel feet for machines

Plates for swivel pads with holes

Plastic plate for 40° swivel pad

with fastening holes

Plates for swivel pads with holes : Plastic plate for 40° swivel pad with fastening holes
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

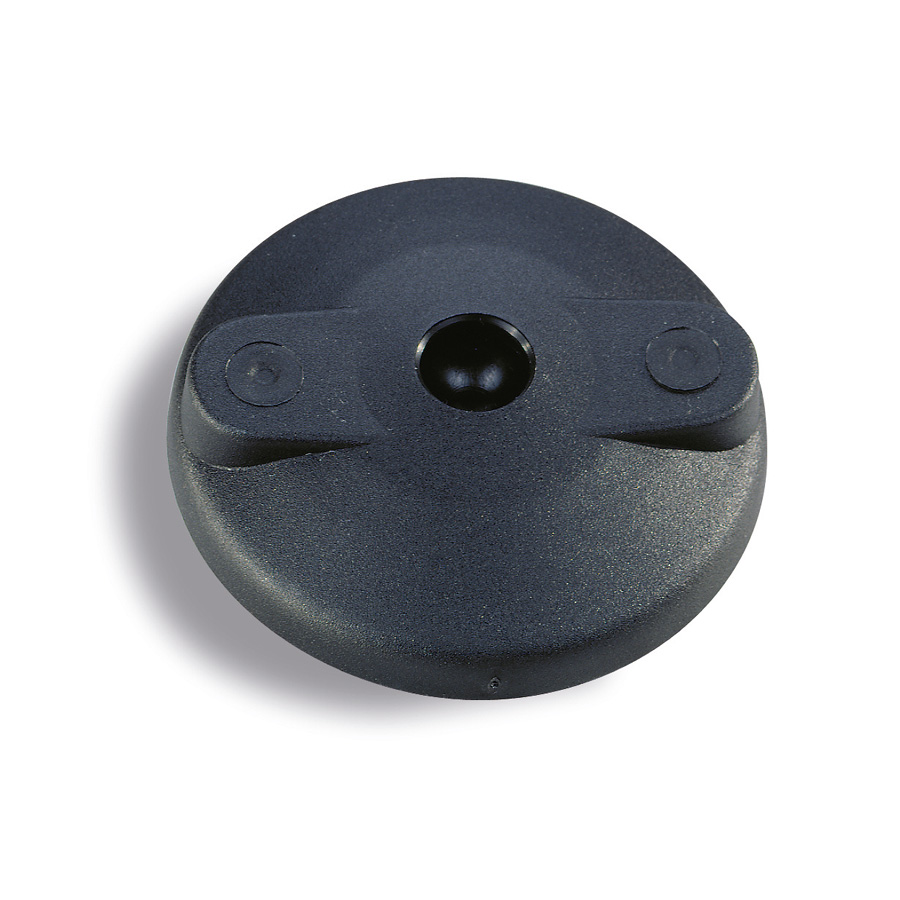

Plate in black polyamid, glass fibre reinforced. With or without anti-slip plate in thermoplastic elastomer.

01 / Without anti-slip plate

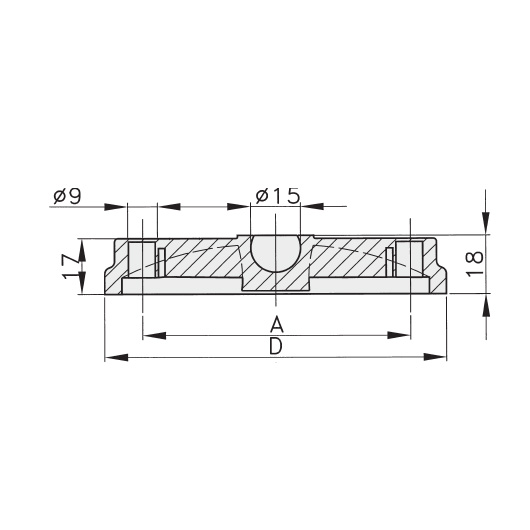

Schéma 3 + Plastic plate for 40° swivel pad with fastening holes
REF DESIGNATION D A CHARGE 3D Quote
123012 BASE NYLON D.80 FOR FEET 40 80 55 9000
123013 BASE NYLON D.100 FOR FEET 40 100 74 9000
123014 BASE NYLON D.120 FOR FEET 40 120 94 9000

02 / With anti-slip plate

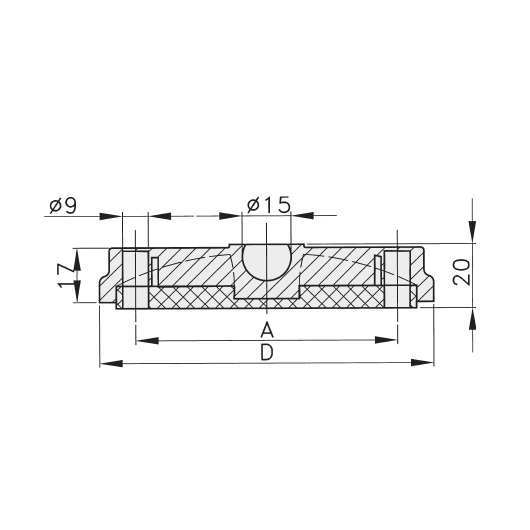

Schéma 4 + Plastic plate for 40° swivel pad with fastening holes
REF DESIGNATION D A CHARGE 3D Quote
123015 BASE NYLON D.80 FOR FEET 40 80 55 9000
123016 BASE NYLON D.100 FOR FEET 40 100 74 9000
123017 BASE NYLON D.120 FOR FEET 40 120 94 9000
