Swivel feet for machines

Spindles for swivel pads
Requires use of

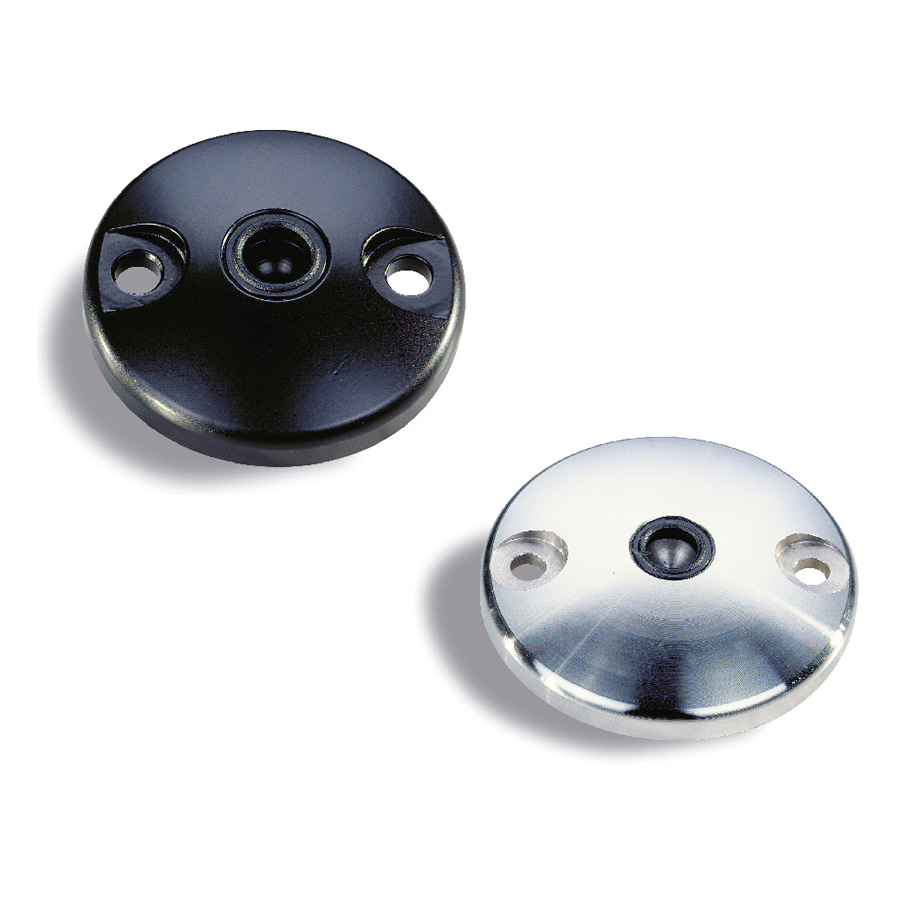

Plastic plate for 40° swivel pad

with fastening holes
Plastic plate for 40° swivel pad

Metal plate for 40° swivel pad

with fastening holes
Metal plate for 40° swivel pad

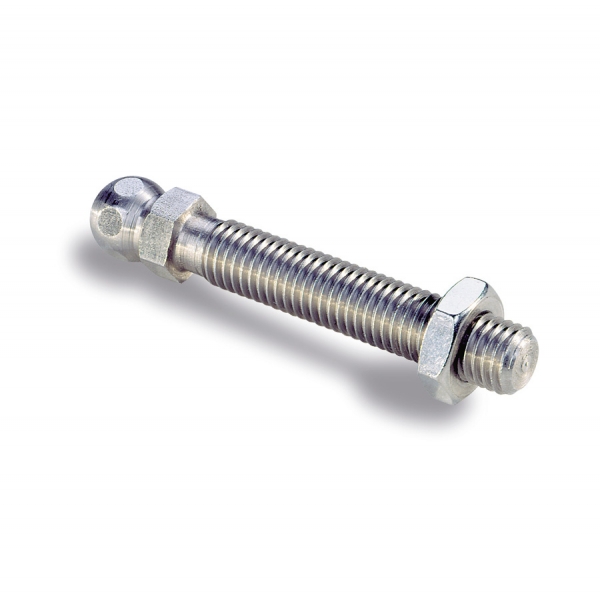

Spindle for 40° swivel pad

Spindles for swivel pads : Spindle for 40° swivel pad
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Spindle in zinc plated steel or stainless steel 1.4301.

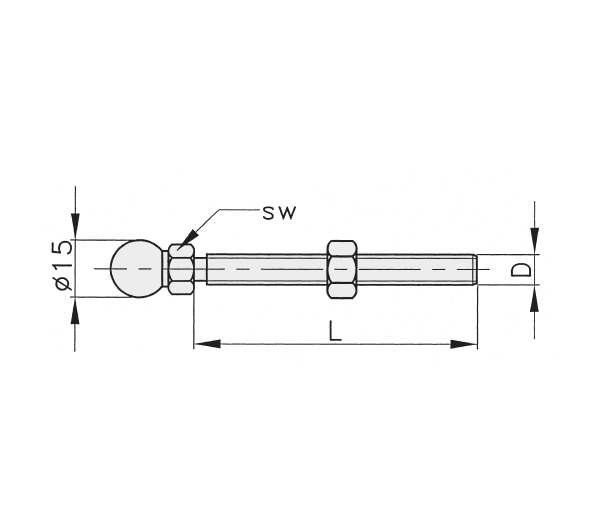

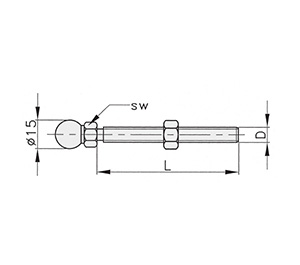

REF DESIGNATION D L L1 SW 3D Quote
123040 ROD STEEL M6*15 FOR FEET 40 6 15 7,5 14
123041 ROD STEEL M6*30 FOR FEET 40 6 30 7,5 14
123042 ROD STEEL M8*40 FOR FEET 40 8 40 7,5 14
123043 ROD STEEL M8*80 FOR FEET 40 8 80 7,5 14
123044 ROD STEEL M10*45 FOR FEET 40 10 45 7,5 14
123045 ROD STEEL M10*70 FOR FEET 40 10 70 7,5 14
123046 ROD STEEL M10*90 FOR FEET 40 10 90 7,5 14
123047 ROD STEEL M10*25 FOR FEET 40 10 125 7,5 14
123048 ROD STEEL M10*150 FOR FEET 40 10 150 7,5 14
123049 ROD STEEL M12*45 FOR FEET 40 12 45 7,5 14
123050 ROD STEEL M12*66 FOR FEET 40 12 66 7,5 14
123051 ROD STEEL M12*100 FOR FEET 40 12 100 7,5 14
123052 ROD STEEL M12*125 FOR FEET 40 12 125 7,5 14
123053 ROD STEEL M12*150 FOR FEET 40 12 150 7,5 14
123054 ROD STEEL M14*66 FOR FEET 40 14 66 7,5 14
123055 ROD STEEL M14*100 FOR FEET 40 14 100 7,5 14
123056 ROD STEEL M14*125 FOR FEET 40 14 125 7,5 14
123057 ROD STEEL M14*150 FOR FEET 40 14 150 7,5 14
123058 ROD STEEL M16*66 FOR FEET 40 16 66 7,5 17
123059 ROD STEEL M16*100 FOR FEET 40 16 100 7,5 17
123060 ROD STEEL M16*125 FOR FEET 40 16 125 7,5 17
123061 ROD STEEL M16*150 FOR FEET 40 16 150 7,5 17
123062 ROD STEEL M16*200 FOR FEET 40 16 200 7,5 17
123063 ROD STEEL M20*85 FOR FEET 40 20 85 10,5 22
123064 ROD STEEL M20*100 FOR FEET 40 20 100 10,5 22
123065 ROD STEEL M20*125 FOR FEET 40 20 125 10,5 22
123066 ROD STEEL M20*150 FOR FEET 40 20 150 10,5 22
123067 ROD STEEL M20*200 FOR FEET 40 20 200 10,5 22
123068 ROD STEEL M24*85 FOR FEET 40 24 85 10,5 24
123069 ROD STEEL M24*100 FOR FEET 40 24 100 10,5 24
123070 ROD STEEL M24*125 FOR FEET 40 24 125 10,5 24
123071 ROD STEEL M24*150 FOR FEET 40 24 150 10,5 24
123072 ROD STEEL M24*200 FOR FEET 40 24 200 10,5 24
123040i ROD STAINLESS M6*15 FOR FEET 40 M6 15 7,5 14
123041i ROD STAINLESS M6*30 FOR FEET 40 M6 30 7,5 14
123042i ROD STAINLESS M8*40 FOR FEET 40 M8 40 7,5 14
123043i ROD STAINLESS M8*80 FOR FEET 40 M8 80 7,5 14
123044i ROD STAINLESS M10*45 FOR FEET 40 M10 45 7,5 14
123045i ROD STAINLESS M10*70 FOR FEET 40 M10 70 7,5 14
123046i ROD STAINLESS M10*90 FOR FEET 40 M10 90 7,5 14
123047i ROD STAINLESS M10*125 FOR FEET 40 M10 125 7,5 14
123048i ROD STAINLESS M10*150 FOR FEET 40 M10 150 7,5 14
123049i ROD STAINLESS M12*45 FOR FEET 40 M12 45 7,5 14
123050i ROD STAINLESS M12*66 FOR FEET 40 M12 66 7,5 14
123051i ROD STAINLESS M12*100 FOR FEET 40 M12 100 7,5 14
123052i ROD STAINLESS M12*125 FOR FEET 40 M12 125 7,5 14
123053i ROD STAINLESS M12*150 FOR FEET 40 M12 150 7,5 14
123054i ROD STAINLESS M14*66 FOR FEET 40 M14 66 7,5 14
123055i ROD STAINLESS M14*100 FOR FEET 40 M14 100 7,5 14
123056i ROD STAINLESS M14*125 FOR FEET 40 M14 125 7,5 14
123057i ROD STAINLESS M14*150 FOR FEET 40 M14 150 7,5 14
123058i ROD STAINLESS M16*66 FOR FEET 40 M16 66 7,5 17
123059i ROD STAINLESS M16*100 FOR FEET 40 M16 100 7,5 17
123060i ROD STAINLESS M16*125 FOR FEET 40 M16 125 7,5 17
123061i ROD STAINLESS M16*150 FOR FEET 40 M16 150 7,5 17
123062i ROD STAINLESS M16*200 FOR FEET 40 M16 200 7,5 17
123063i ROD STAINLESS M20*85 FOR FEET 40 M20 85 10,5 22
123064i ROD STAINLESS M20*100 FOR FEET 40 M20 100 10,5 22
123065i ROD STAINLESS M20*125 FOR FEET 40 M20 125 10,5 22
123066i ROD STAINLESS M20*150 FOR FEET 40 M20 150 10,5 22
123067i ROD STAINLESS M20*200 FOR FEET 40 M20 200 10,5 22
123068i ROD STAINLESS M24*85 FOR FEET 40 M24 85 10,5 24
123069i ROD STAINLESS M24*100 FOR FEET 40 M24 100 10,5 24
123070i ROD STAINLESS M24*125 FOR FEET 40 M24 125 10,5 24
123071i ROD STAINLESS M24*150 FOR FEET 40 M24 150 10,5 24
123072i ROD STAINLESS M24*200 FOR FEET 40 M24 200 10,5 24
