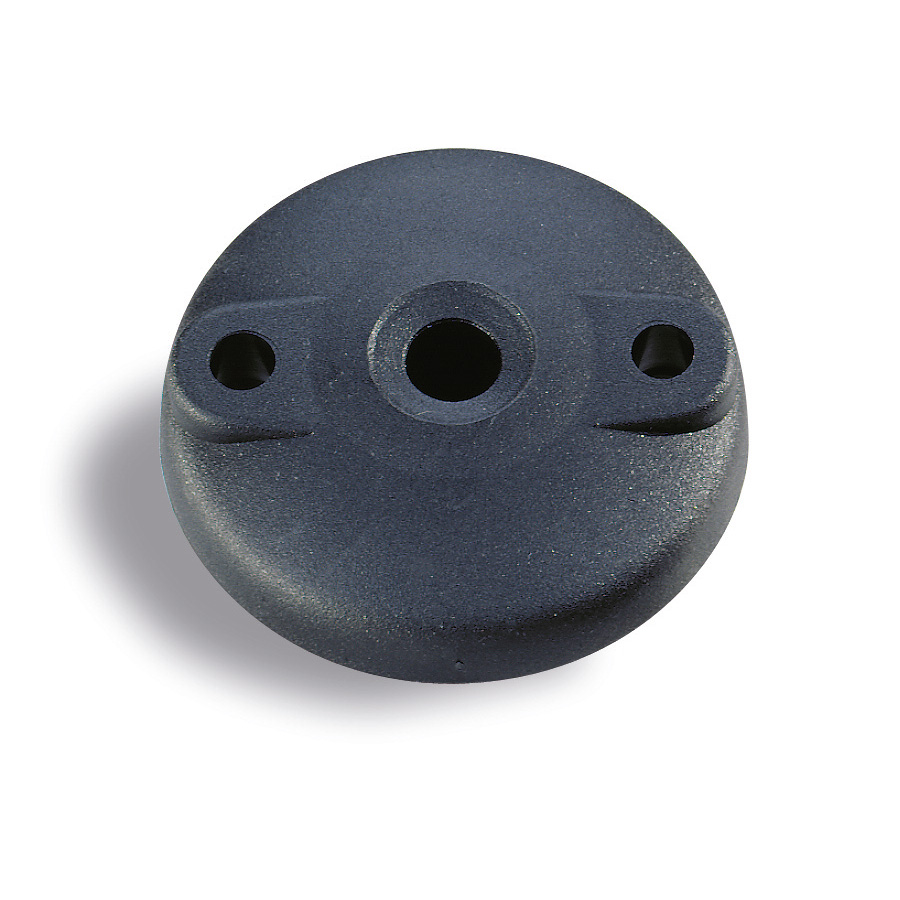

Plastic plate for 8° swivel feet

with fastening holes
Plastic plate for 8° swivel feet

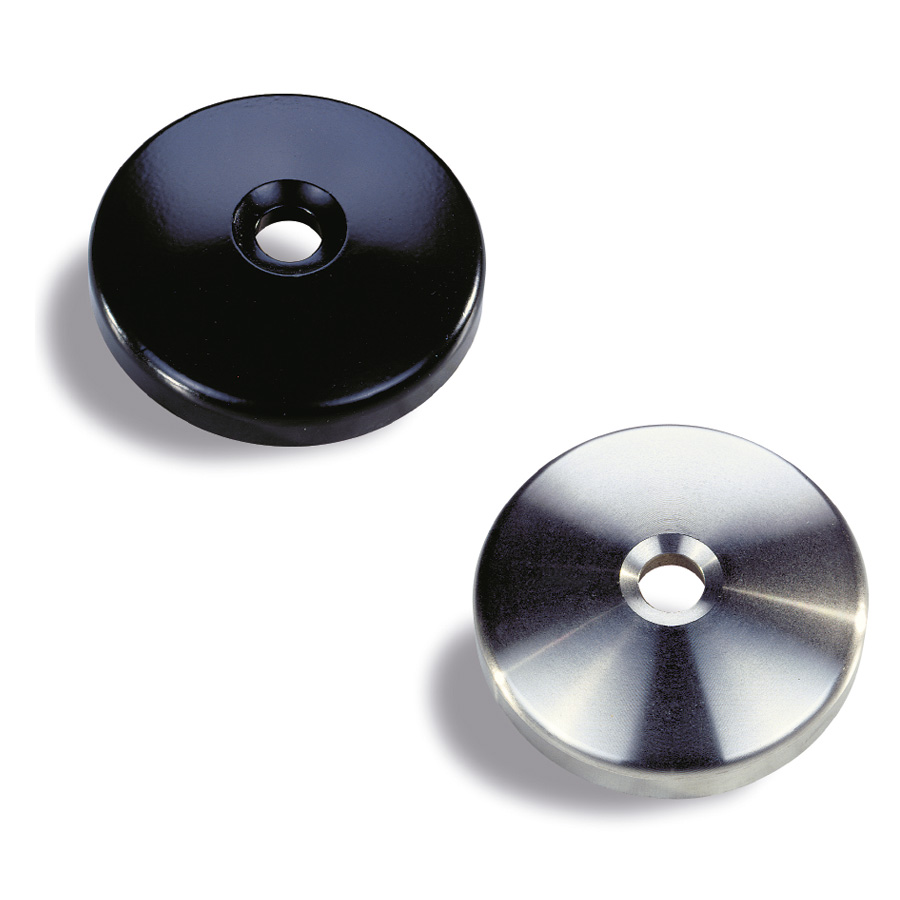

Metal plate for 8° swivel feet

with fastening holes
Metal plate for 8° swivel feet

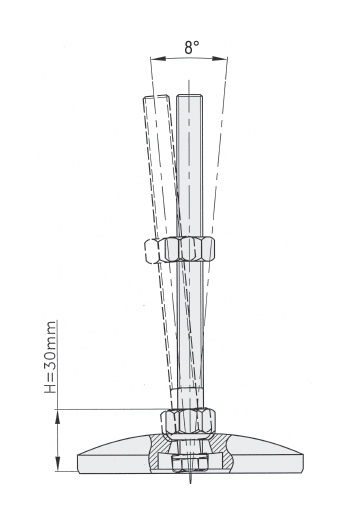

spindle for 8° swivel feet

Spindles for swivel pads : spindle for 8° swivel feet
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

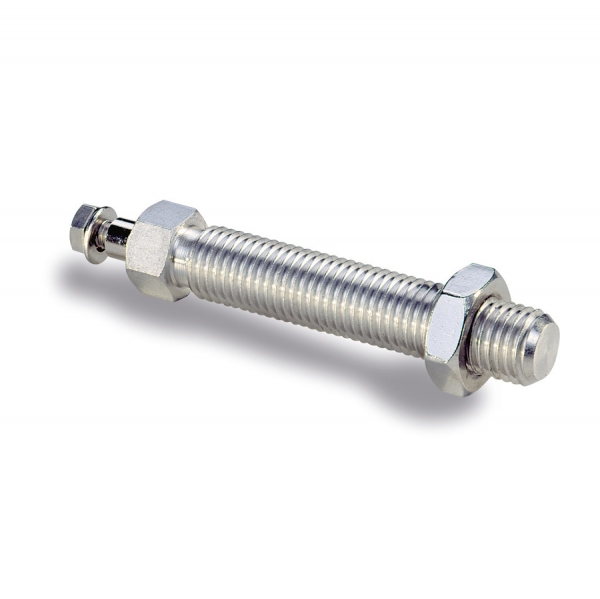

Spindle in zinc plated steel or stainless steel 1.4305

Loading, please wait...

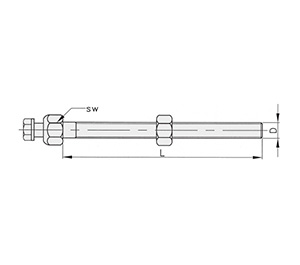

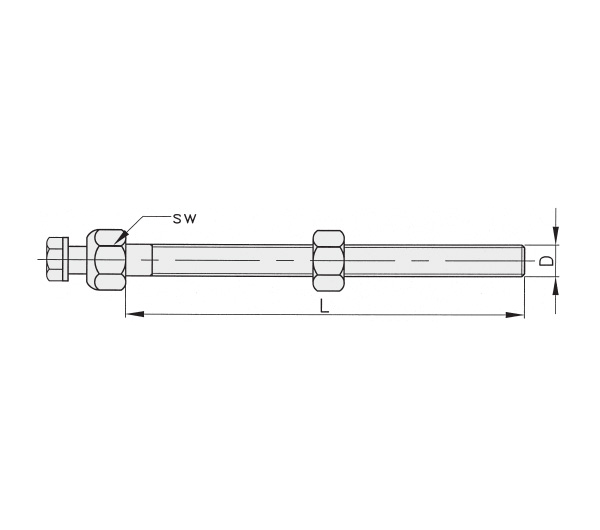

REF
DESIGNATION
D
L
SW
3D
Quote
123099ROD STEEL M12*66 FOR FEET 8M126622
123100ROD STEEL M12*100 FOR FEET 8M1210022
123101ROD STEEL M12*125 FOR FEET 8M1212522
123102ROD STEEL M12*150 FOR FEET 8M1215022
123103ROD STEEL M16*66 FOR FEET 8M166622
123104ROD STEEL M16*100 FOR FEET 8M1610022
123105ROD STEEL M16*125 FOR FEET 8M1612522
123106ROD STEEL M16*150 FOR FEET 8M1615022
123107ROD STEEL M16*200 FOR FEET 8M1620022
123108ROD STEEL M20*100 FOR FEET 8M2010022
123109ROD STEEL M20*125 FOR FEET 8M2012522
123110ROD STEEL M20*150 FOR FEET 8M2015022
123111ROD STEEL M20*200 FOR FEET 8M2020022
123099iROD STAINLESS M12*66 FOR FEET 8M126622
123100iROD STAINLESS M12*100 FOR FEET 8M1210022
123101iROD STAINLESS M12*125 FOR FEET 8M1212522
123102iROD STAINLESS M12*150 FOR FEET 8M1215022
123103iROD STAINLESS M16*66 FOR FEET 8M166622
123104iROD STAINLESS M16*100 FOR FEET 8M1610022
123105iROD STAINLESS M16*125 FOR FEET 8M1612522
123106iROD STAINLESS M16*150 FOR FEET 8M1615022
123107iROD STAINLESS M16*200 FOR FEET 8M1620022
123108iROD STAINLESS M20*100 FOR FEET 8M2010022
123109iROD STAINLESS M20*125 FOR FEET 8M2012522
123110iROD STAINLESS M20*150 FOR FEET 8M2015022
123111iROD STAINLESS M20*200 FOR FEET 8M2020022
