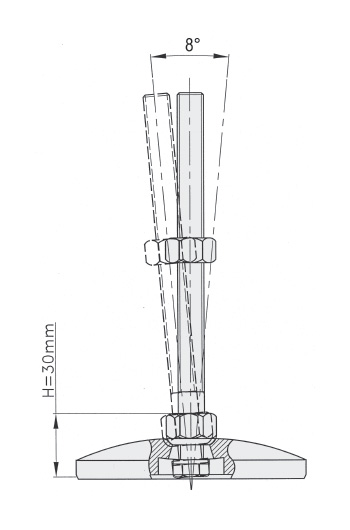

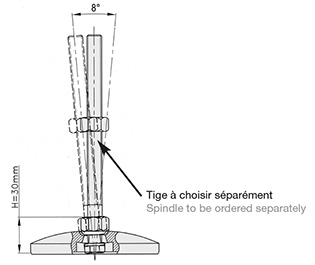

Metal plate for 8° swivel feet

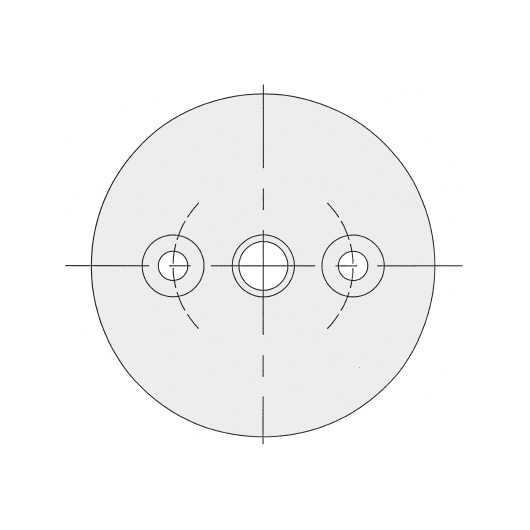

with fastening holes

Plates for swivel pads with holes : Metal plate for 8° swivel feet
with fastening holes
  • Reach
  • Rohs

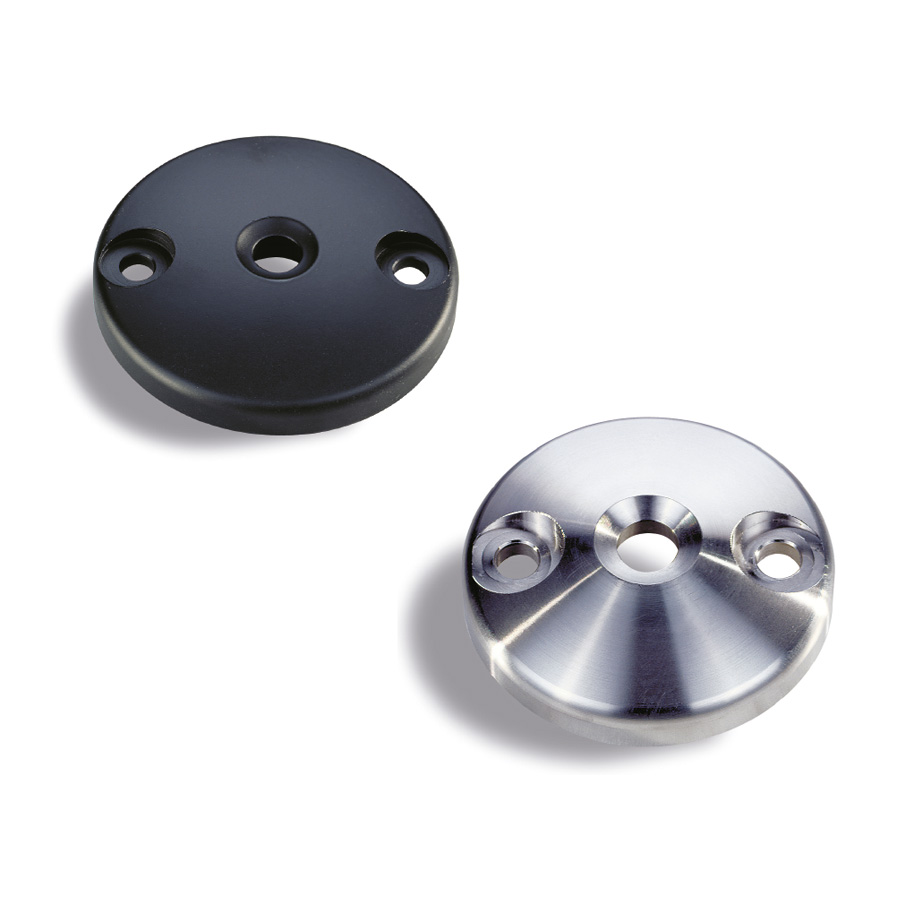

Plate in die cast zinc, black powder-coated or stainless steel 1.4305. With or without anti-slip plate in thermoplastic elastomer.


01 / Without anti-slip plate

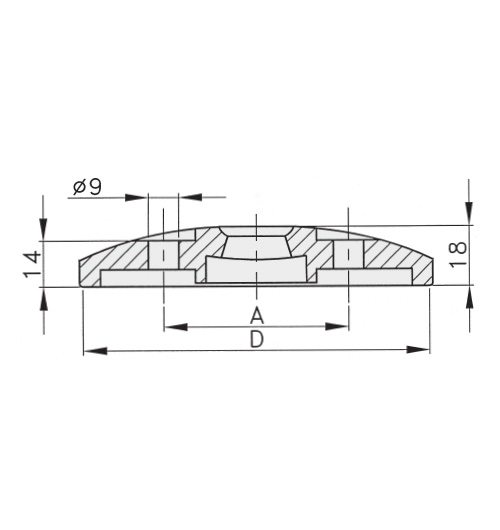

Schéma 3 + Metal plate for 8° swivel feet
with fastening holes
Loading, please wait...
REF
DESIGNATION
D
A
CHARGE
3D
Quote
123095BASE DIECASTZINC D.80 FOR FEET 8805535000
123096BASE DIECASTZINC D.100 FOR FEET 81007435000
123095iBASE STAINLESS D.80 FOR FEET 8805535000
123096iBASE STAINLESS D.100 FOR FEET 81007435000

02 / With anti-slip plate

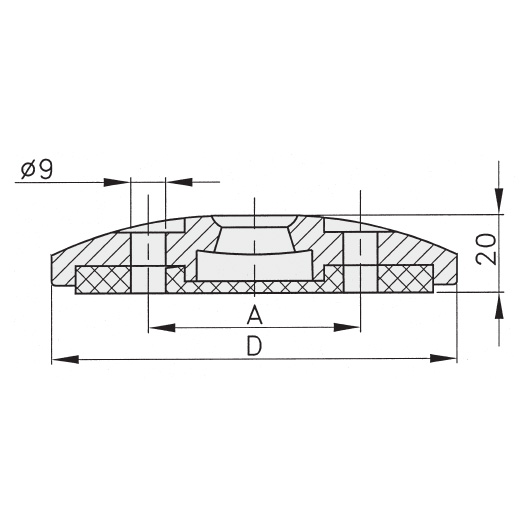

Schéma 4 + Metal plate for 8° swivel feet
with fastening holes
Loading, please wait...
REF
DESIGNATION
D
A
CHARGE
3D
Quote
123097BASE DIECASTZINC D.80 FOR FEET 8805535000
123098BASE DIECASTZINC D.100 FOR FEET 81007435000
123097iBASE STAINLESS D.80 FOR FEET 8805535000
123098iBASE STAINLESS D.100 FOR FEET 81007435000
