Toggle clamps

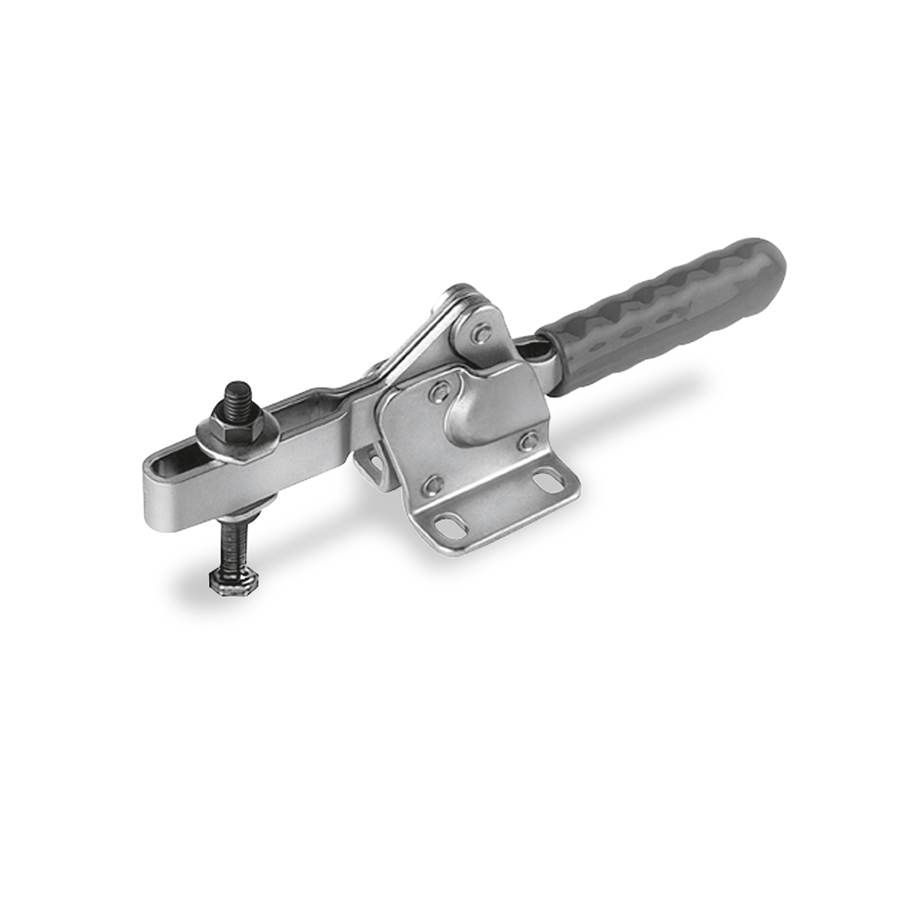

Horizontal clamp H2-B

3D visualisation

Technical specifications

Add to favourites

Clamp made of galvanized steel or stainless steel AISI 304. Clamp supplied complete with fastening material, including a neoprene pressure pad for the 2 smallest sizes. Handle cover in orange oil-resistant plastic.

Loading, please wait...

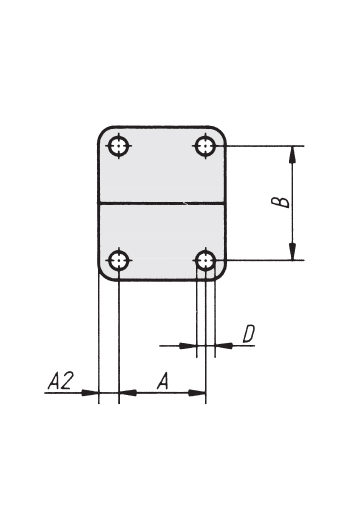

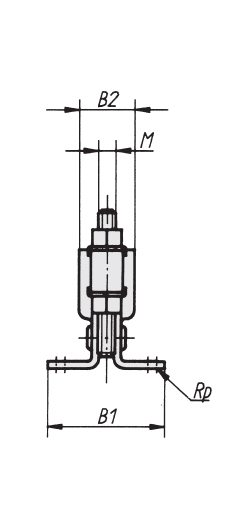

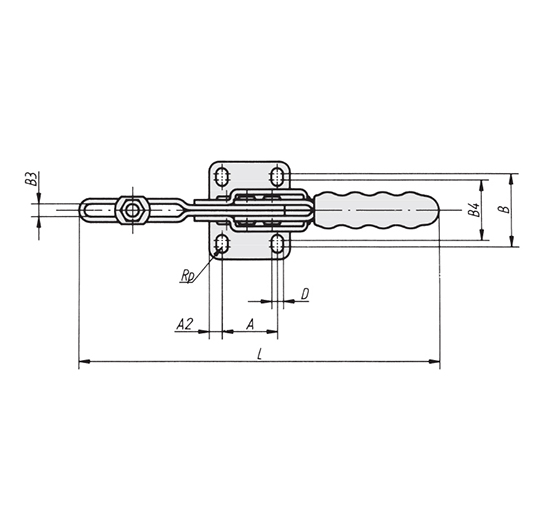

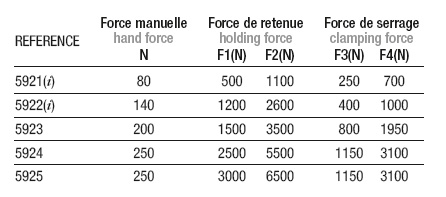

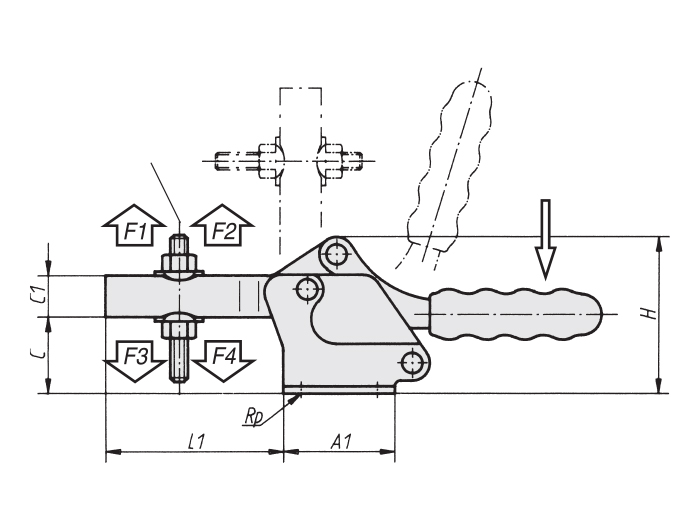

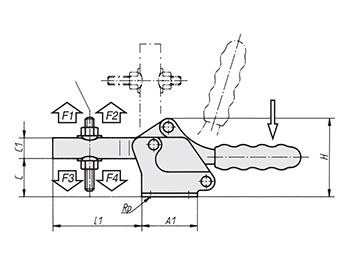

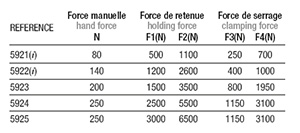

REF	DESIGNATION	M	A	A1	A2	B	B1	B2	B3	B4	C	C1	D	F1	F2	F3	F4	H	L	L1	N
5921	HORIZONTAL CLAMP STEEL 750N ADJUSTABLE ARM	M5x35	13,5	25	5,7	16,8	27	16	5,8	0	19	9,5	5,2	500	1100	250	700	37	116	37	80
5922	HORIZONTAL CLAMP STEEL 1500N ADJUSTABLE ARM	M6x50	26	38	6	28	40	20	6,2	22	25	14	5,5	1200	2600	400	1000	53	170	61	140
5923	HORIZONTAL CLAMP H2-B 2500N	M8x60	26	42	8	31	46	23	9	26	34	17,5	6,6	1500	3500	800	1950	67	224	79	200
5924	HORIZONTAL CLAMP H2-B 3500N	M10x80	41,2	59	9	43	59	30	11,4	39	45	23	8,7	2500	5500	1150	3100	89	274	108	250
5925	HORIZONTAL CLAMP H2-B 4500N	M12x100	41,2	66	13	41,3	67	34	13,2	0	59	26	8,7	3000	6500	1150	3100	110	305	128	250
5921i	HORIZONTAL CLAMP H2-B STAINL. 750N	M5x35	13,5	25	5,7	16,8	27	16	5,8	0	19	9,5	5,2	500	1100	250	700	37	116	37	80
5922i	HORIZONTAL CLAMP H2-B STAINL. 1500N	M6x50	26	38	6	28	40	20	6,2	22	25	14	5,5	1200	2600	400	1000	53	170	61	140
