Heavy duty Vertical clamp in steel

Vertical clamps : Heavy duty Vertical clamp in steel
  • Reach
  • Rohs

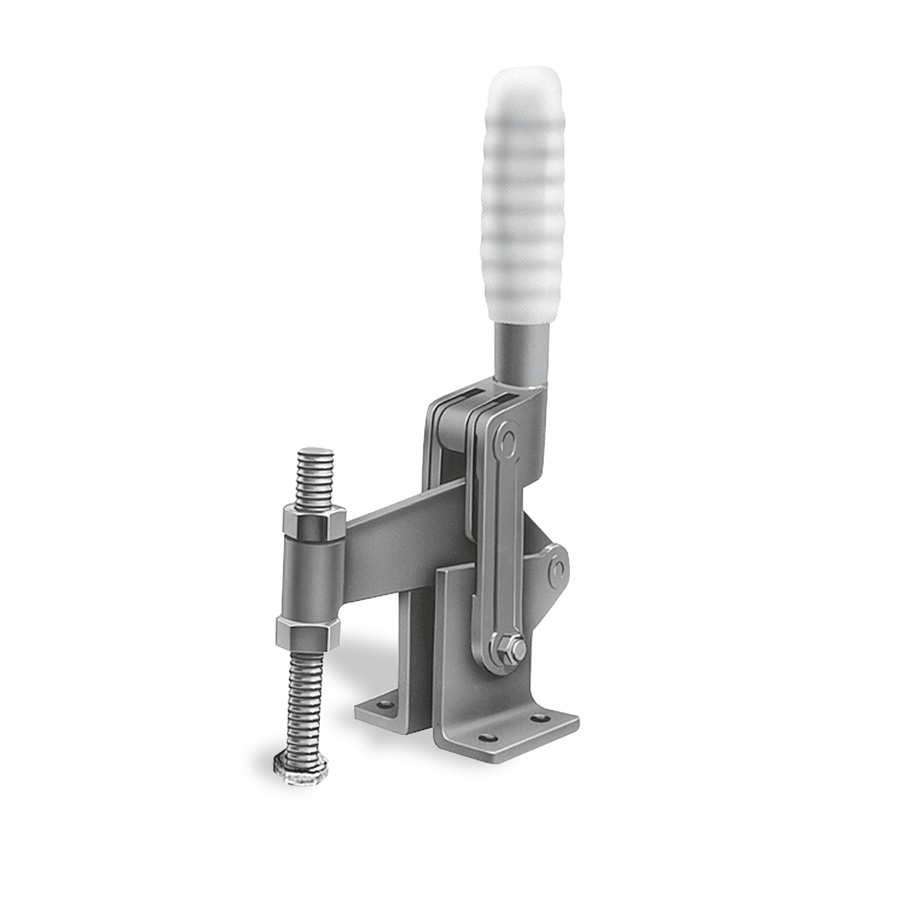

Clamp in steel, black oxide finish, clamping spindle and nuts phosphated, bearing pins and bearing sleeves casehardened. Handle cover in orange oil-resistant plastic. Clamp supplied complete with fastening material.

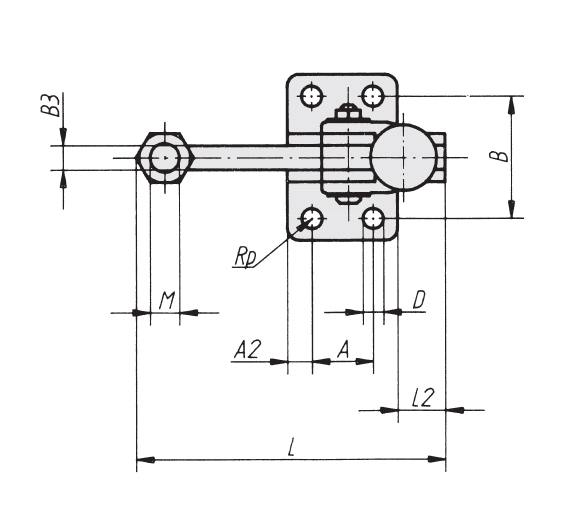

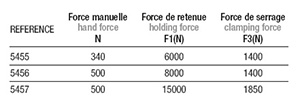

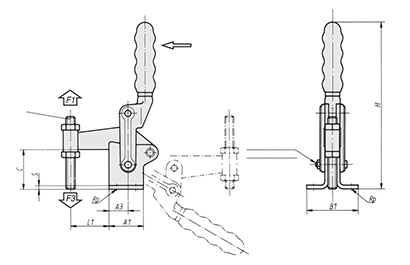

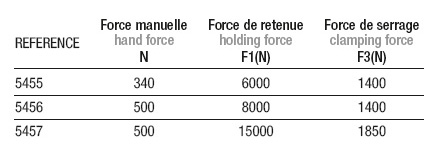

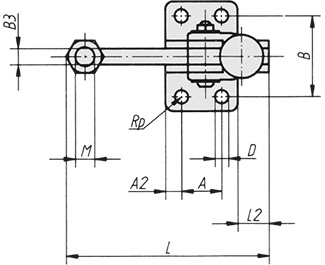

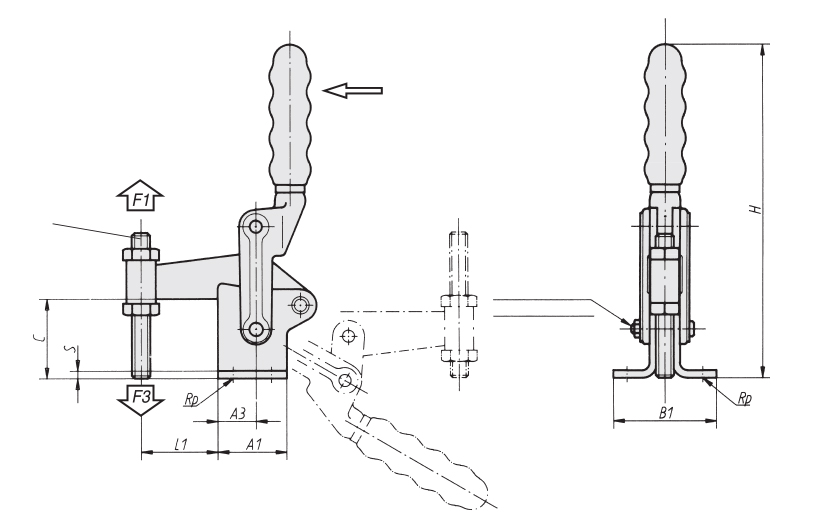

REF DESIGNATION M A A1 A2 A3 B B1 B3 C D F1 F3 H L L1 L2 N 3D Quote
5455 HEAVY DUTY VERTICAL CLAMP 7000N M12x100 25 45 10 25 50 67 10 48 8,3 6000 1400 215 124 50 20 340
5456 HEAVY DUTY VERTICAL CLAMP 12000N M12x100 30 50 10 25 60 88 12 58 8,3 8000 1400 250 144 60 24 500
5457 HEAVY DUTY VERTICAL CLAMP 24000N M16x150 40 63 12 40 75 105 16 70 10,3 15000 1850 295 188 75 35 500
