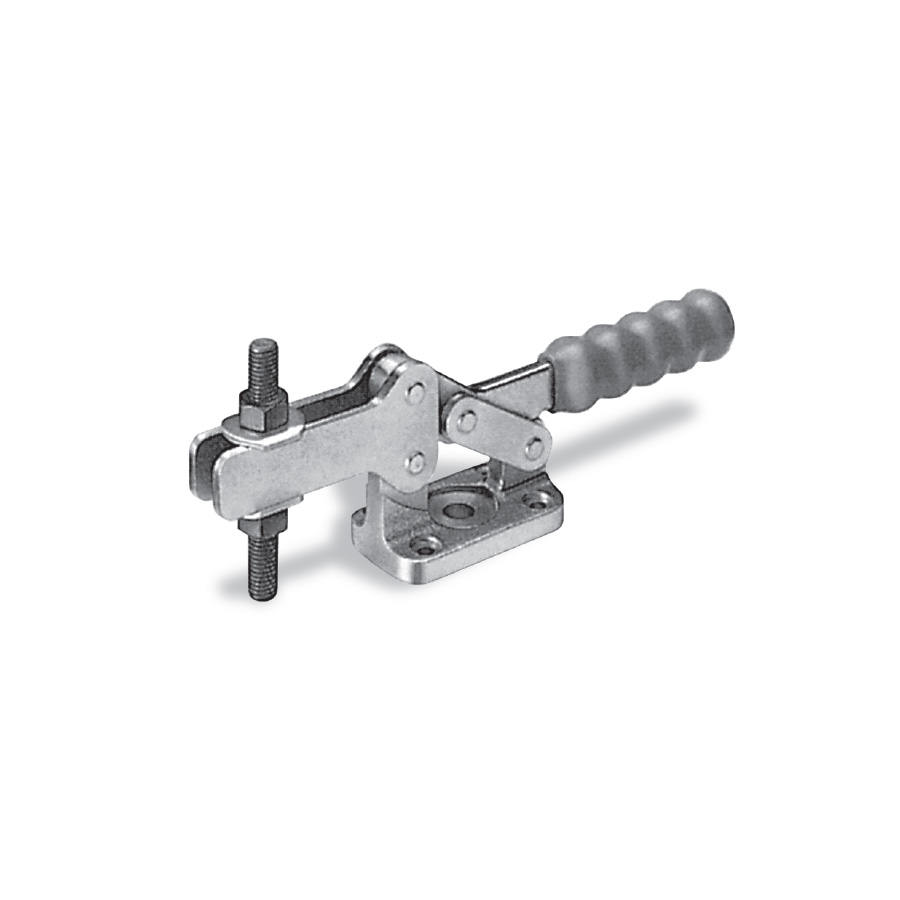

Heavy duty Horizontal clamp

Horizontal clamps : Heavy duty Horizontal clamp
  • Reach
  • Rohs
Base and handle in cast steel. Clamp in galvanized steel. Clamping spindle and nuts phosphated. Clamp supplied complete with fastening material.

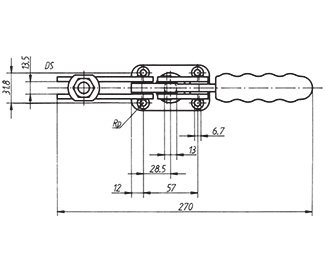

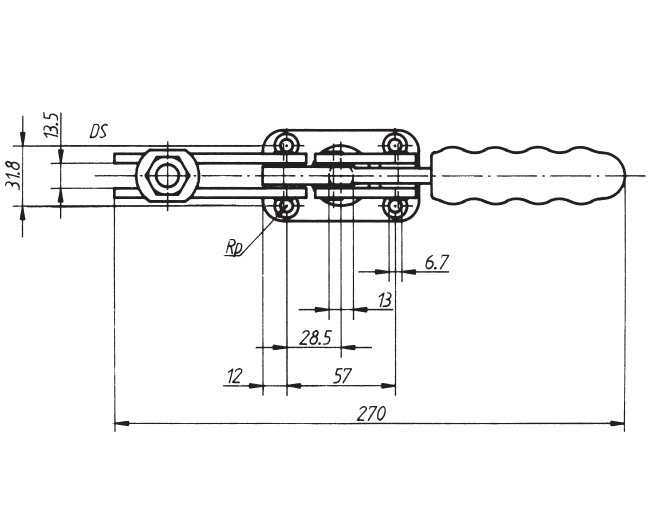

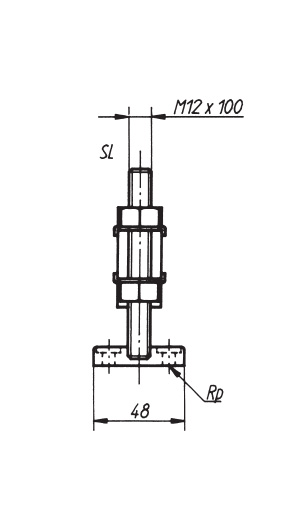

REF DESIGNATION M A A1 A2 A3 B B1 B3 C C1 D D1 F1 F2 F3 F4 H L L1 N 3D Quote
5465 HEAVY-DUTY HORIZONTAL CLAMP 7000N M12x100 57,2 81 12 28,6 31,8 48 13,5 45 25 6,7 13 4500 9000 1800 3550 84 270 78 250
